IP67 Led High Mast Light
MODEL: JR309
POWER: 50W 100W 150W 200W 240W 300W 350W 400W 480W 500W 600W
Input Volt.: AC100-277V DC24V DC48V
Light effect: 170/180/190/200Lm/W
Beam Angle: 25° 40° 60° 90°
Color temperature: 3000-6000K
LED TYPE: SMD5050
CERTIFICATION: CE/ROHS/IP67/IK09/ISO9001/ISO14001
- Product Description
- Product Features
- Product Details
- Specification
- Photometrics
- Video
- Application Scenarios
- FAQ
- Send Inquiry
- More Products
Product Description
The JR309 Series LED flood light fixtures are built for unparalleled efficiency and performance, providing impressive light outputs ranging from 9,500 to 114,000 lumens. With light efficiency reaching up to 190Lm/W, this series maximizes brightness while minimizing energy consumption, making it ideal for both industrial and commercial use where precision and reliability are paramount. The JR309LED flood light fixturesoffer flexible power options (AC100-277V, DC24V, and DC48V) and are designed to meet the needs of various high-demand environments, from large outdoor areas to focused indoor applications.
TheseLED flood light fixturesare available in multiple beam angles, from 25° for concentrated illumination to 110° for wide-area coverage. With a color temperature range from 3000K to 6000K, the JR309 seriesLED flood light fixtures can provide both warm, ambient lighting and bright, daylight-like illumination, suitable for all settings. Built to perform even in extreme temperatures (-40℃ to 50℃), each unit is rated for a lifespan of over 50,000 hours, ensuring both durability and low maintenance.
Product Features

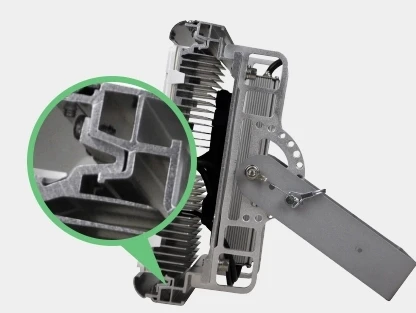

- Professional cooling structure technology, inside and outside air ducts design, high efficiency heat dissipation performance
- IP67 protection level, LED module has IP68 protection level

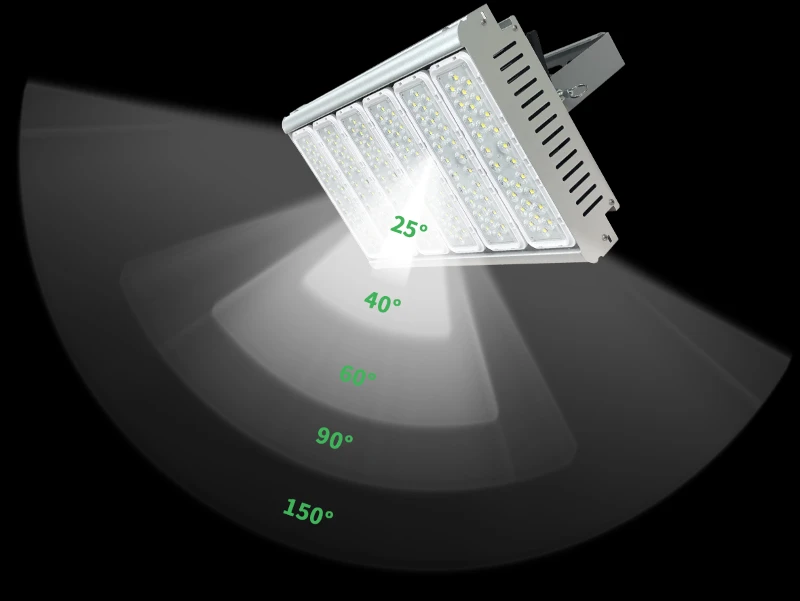

- A variety of lens options to meet different application requirements for light distribution, optical PC lens, uniform glare-free brightness

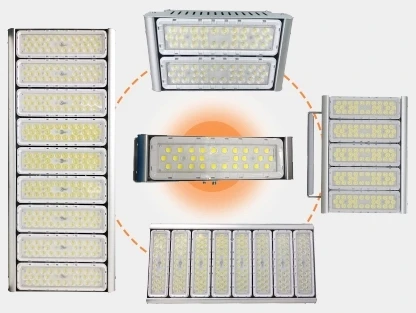

- Freely assembled different numbers of modules for different power, highly adaptable functionality

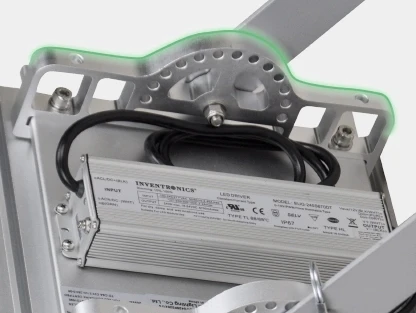

- All-metal structure, high mechanical strength
- Suitable for factories, industrial sites, sports field, gas stations, parking lots, station halls, railway stations, ports installations and mobile light towers etc.
Product Details
Specification
| Model | Power(W) | Module Qty | Light Efficiency | Voltage(V) | CRI(Ra) | Beam Angle | CCT(K) | Ta | Power Factor | N.W/G.W (KG) |
Packing size (mm) |
|
| JR309-50W | 50 | 1 | 190Lm/W | AC100-277V DC24V DC48V |
≥70 | 25° 40° 60° 90° |
3000~6000 | -40~50℃ | ＞0.95 | 2.7/3.2 | 395×210×200 | |
| JR309-100W | 100 | 2 | 190Lm/W | 4.0/4.5 | 395×250×200 | |||||||
| JR309-150W | 150 | 2 | 170Lm/W | 4.0/4.5 | 395×250×200 | |||||||
| JR309-200W | 200 | 3 | 180Lm/W | 5.5/6.2 | 395×350×200 | |||||||
| JR309-240W | 240 | 3 | 170Lm/W | 5.5/6.2 | 395×350×200 | |||||||
| JR309-300W | 300 | 4 | 170Lm/W | 8.8/10.0 | 485×390×210 | |||||||
| JR309-350W | 350 | 5 | 180Lm/W | 11.2/12.2 | 540×390×235 | |||||||
| JR309-400W | 400 | 6 | 180Lm/W | 11.2/12.2 | 540×390×235 | |||||||
| JR309-480W | 480 | 6 | 170Lm/W | 11.2/12.2 | 540×390×235 | |||||||
| JR309-500W | 500 | 8 | 180Lm/W | 14.6/16.1 | 700×390×235 | |||||||
| JR309-600W | 600 | 9 | 170Lm/W | 14.6/16.1 | 700×390×235 | |||||||
| Note: Letter "W" in the model no. stands for AC voltage; "DT" stands for DC24V; "DF" stands for DC48V. | ||||||||||||
Size
| Size/Model | a | b | c | d |
| JR309-50W | 296 | 80 | 150 | 130 |
| JR309-100W | 296 | 160 | 210 | 154 |
| JR309-150W | 296 | 240 | 290 | 154 |
| JR309-200W | 296 | 240 | 290 | 154 |
| JR309-240W | 320 | 320 | 346 | 165 |
| JR309-300W | 320 | 320 | 346 | 165 |
| JR309-350W | 480 | 296 | 346 | 165 |
| JR309-400W | 480 | 296 | 346 | 165 |
| JR309-480W | 480 | 296 | 346 | 165 |
| JR309-500W | 640 | 296 | 346 | 165 |
| JR309-600W | 640 | 296 | 346 | 165 |

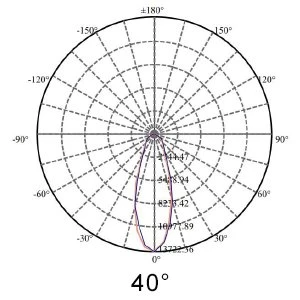

Photometrics
Video
Application Scenarios
FAQ
Q: What is the voltage range of your LED flood light?
A: We offer a voltage range of AC100~277V and DC12V/DC24V/DC48V.
Q: How do your products compare to similar products in the market?
A: Our products are highly efficient, lightweight, anti-corrosive, and anti-shock performance.
Q: What certifications have you obtained?
A: Our LED Lights are CSA, SAA, CE, and BIS-approved.
Q: What's the application for yourLED flood light fixtures?
A: Our LED flood lights are widely used at Diesel/Solar/Hybrid lighting towers, stadiums, Sports fields, Ports, Industrial places, Construction Sites, Docks, Mining Sites etc
Q: What's the luminous efficiency of yourLED flood light fixtures?
A: Our LED Flood light offers 150~200lm/w.
Q: Do you offer a guarantee for the products?
A: Yes,We offer a 2-year warranty for DC LED lights and a 3-year warranty for AC LED lights(If the generator is used for power generation, the warranty period is 3 years; if used with grid power, the warranty period is 5 years)
Q: Can your factory make the lights based on customers' designs?
A: Yes, we offer OEM and ODM service, we can design and produce according to the client's requests, and we have professional engineers for R&D.
Q: Are you a factory or trading company?
A: We are a factory and trading company integration. our sales center and R&D department are located in Shanghai, and the factory is located in Suzhou City. We welcome customers to visit our factory.
