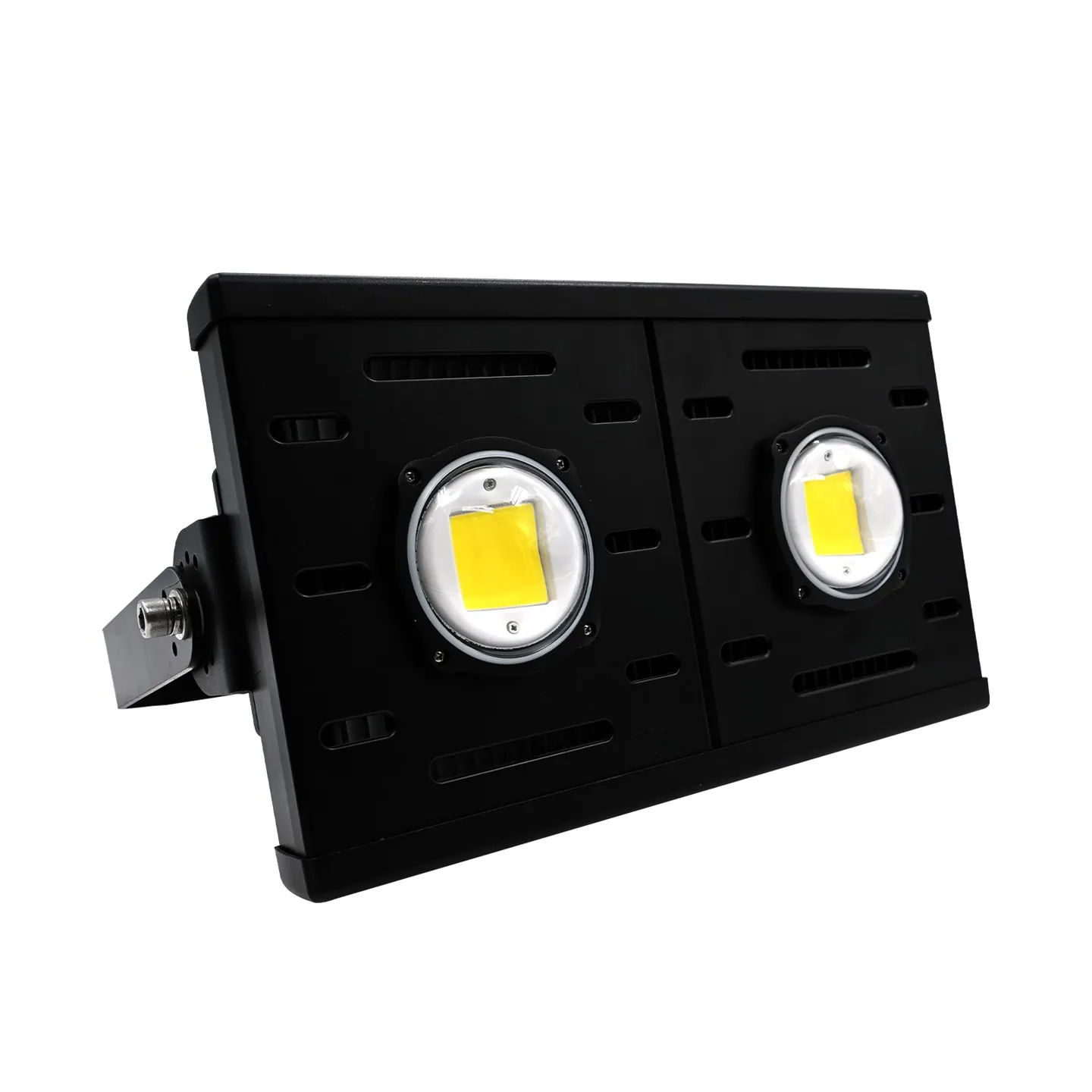

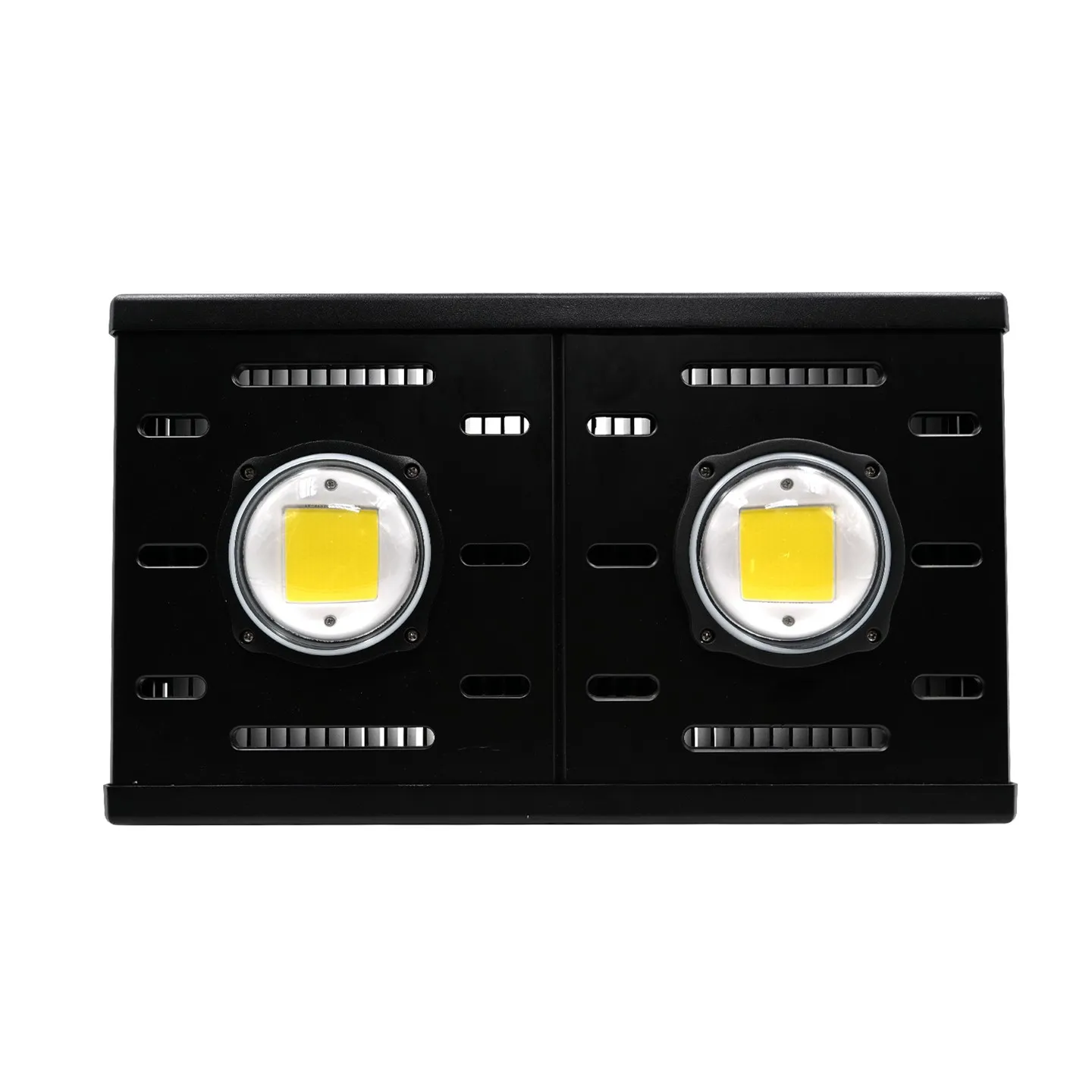

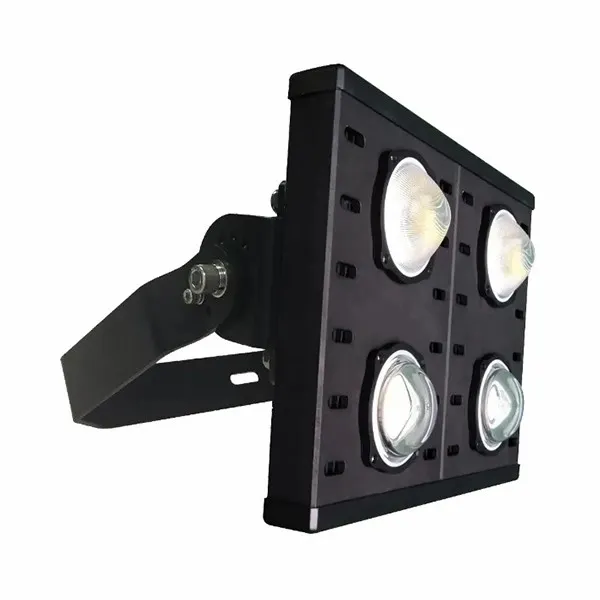

IP66 Led Flood Light
MODEL: JR313
POWER: 300W 400W 500W
Input Volt.: AC100-277V DC24V DC48V
Light effect: 150Lm/W
Beam Angle: 45° 60° 90° 120°
Color temperature: 3000-6000K
LED TYPE: COB
CERTIFICATION: CE/ROHS/IP66/IK08/ISO9001/ISO14001
- Product Description
- Product Features
- Product Details
- Specification
- Photometrics
- Video
- Application Scenarios
- FAQ
- Send Inquiry
- More Products
Product Description
Product Features
- IP66 Led Flood Light: Fashionable & modern design, aluminum of lamp's main structural parts. Surface electrostatic coating with anti-impact, anti-corrosion and anti-shock functions
- The lamp's main body uses hollow laser processing to enhance air mobility without accumulating dust to accelerate the light fixture cooling, and effectively reduce the wind resistance when working at high altitude, improves structural safety
- Main heat dissipation parts made from ultra-high heat transfer aluminum, processed by a unique forging process with high efficient thermal conductivity and heat dissipation performance, effectively reduces the LED Chip temperature and extends the service life of the LED
- High-intensity optical lens, improved light transmittance
- Highly reliable seal structure design, uses an imported anti-aging silicone rubber sealing ring, IP66 protection rating
- Uses imported high qualityCOB outdoor flood lights source, low luminous depreciation, and high luminous efficiency, stable and durable
- High-strength steel bracket, wide range of adjustable light angles
- Suitable for factories, industrial sites, sports field, gas stations, parking lots, station halls, railway stations, ports installations and mobile light towers etc.
Product Details
Specification
| Model | Power(W) | EPINumber | Light Efficiency | Voltage(V) | CRI(Ra) | Beam Angle | CCT(K) | EnvironmentTemperature | Life Time(H) | Ctn/Pcs | N.W/G.W(KG) | Packing size(mm) |
| JR313-300W | 300 | 2 | 150Lm/W |
AC100~277V DC24V DC48V |
＞70 | 60° 90° 120° | 3000~6000 | -40~50℃ | ≥50000 | 1 | 10.0/11.2 | 640×400×230 |
| JR313-400W | 400 | 4 | 150Lm/W | 1 | 14.7/16.2 | 645×480×280 | ||||||
| JR313-500W | 500 | 4 | 150Lm/W | 1 | 15.0/16.5 | 645×480×280 | ||||||
| Note：Letter "W" in the model no. stands for AC voltage; "DT" stands for DC24V; "DF" stands for DC48V. | ||||||||||||
Size
Photometrics
Video
Application Scenarios
FAQ
Q: What is the voltage range of yourCOB outdoor flood lights?
A: We offer a voltage range of AC100~277V and DC12V/DC24V/DC48V.
Q: How do your products compare to similar products in the market?
A: Our products are highly efficient, lightweight, anti-corrosive, and anti-shock performance.
Q: What certifications have you obtained?
A: Our LED Lights are CSA, SAA, CE, and BIS-approved.
Q: What's the application for your LED flood Light?
A: Our LED flood lights are widely used at Diesel/Solar/Hybrid lighting towers, stadiums, Sports fields, Ports, Industrial places, Construction Sites, Docks, Mining Sites etc
Q: What's the luminous efficiency of yourCOB outdoor flood lights?
A: Our LED Flood light offers 150~200lm/w.
Q: Do you offer a guarantee for the products?
A: Yes,We offer a 2-year warranty for DC LED lights and a 3-year warranty for AC LED lights(If the generator is used for power generation, the warranty period is 3 years; if used with grid power, the warranty period is 5 years)
Q: Can your factory make the lights based on customers' designs?
A: Yes, we offer OEM and ODM service, we can design and produce according to the client's requests, and we have professional engineers for R&D.
Q: Are you a factory or trading company?
A: We are a factory and trading company integration. our sales center and R&D department are located in Shanghai, and the factory is located in Suzhou City. We welcome customers to visit our factory.
