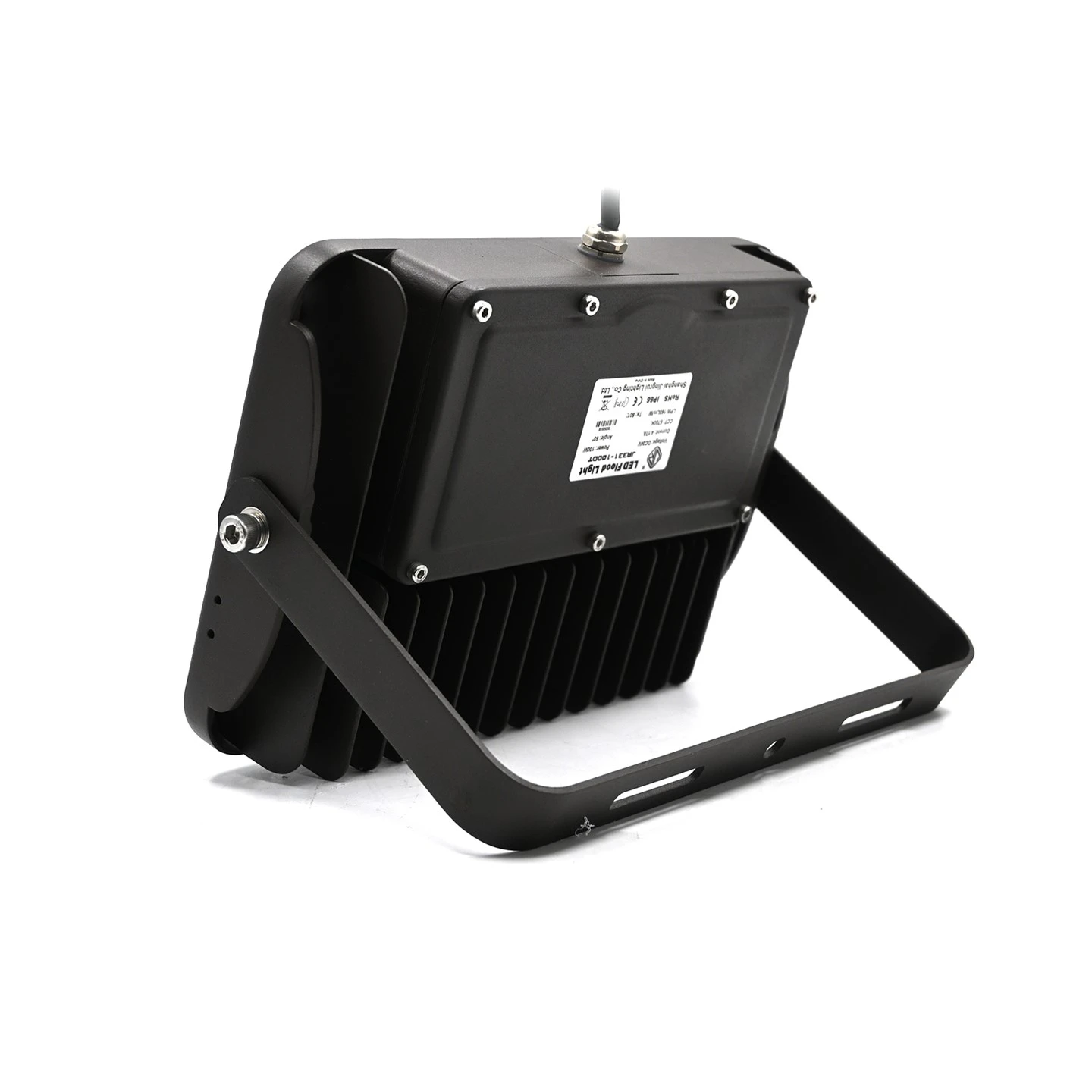

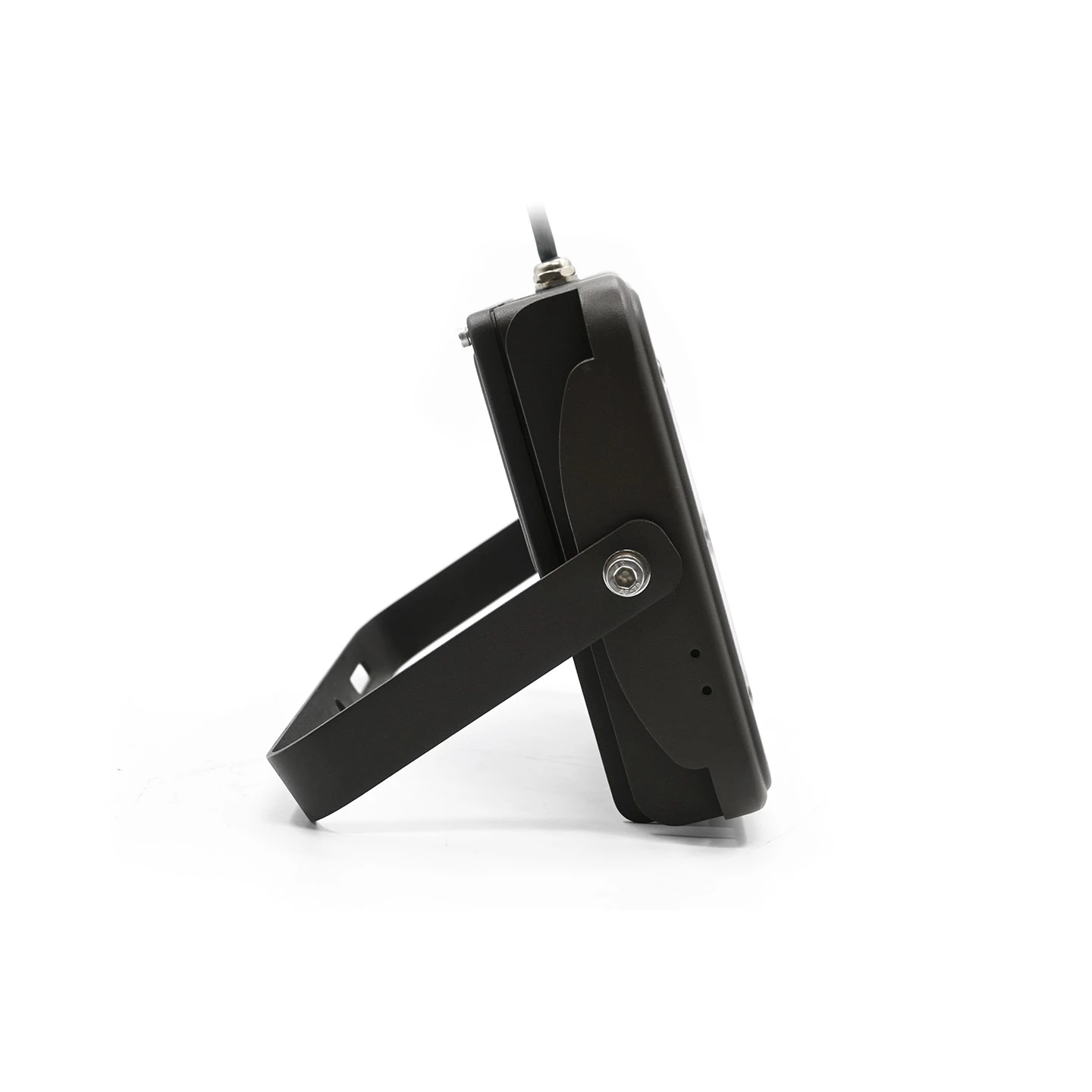

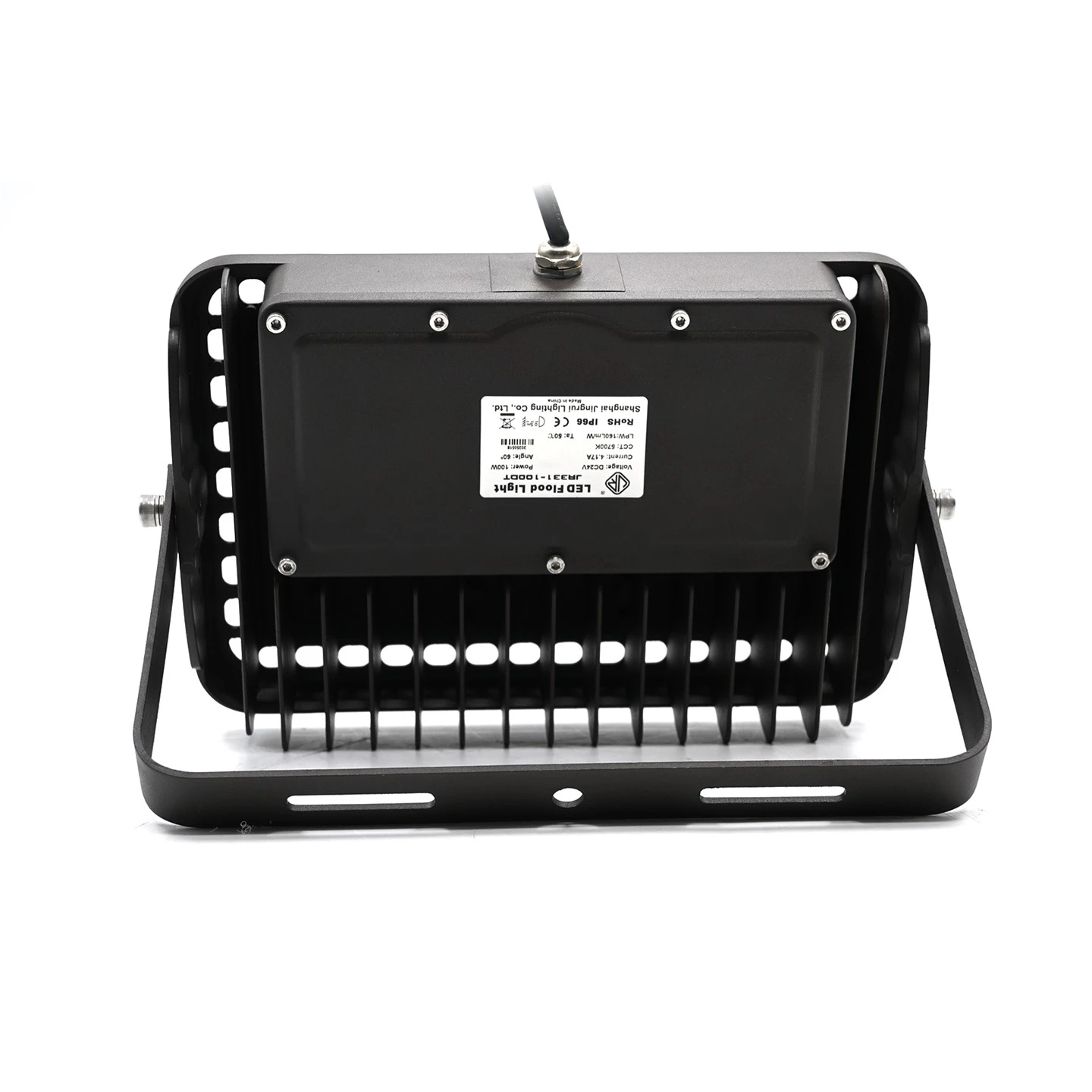

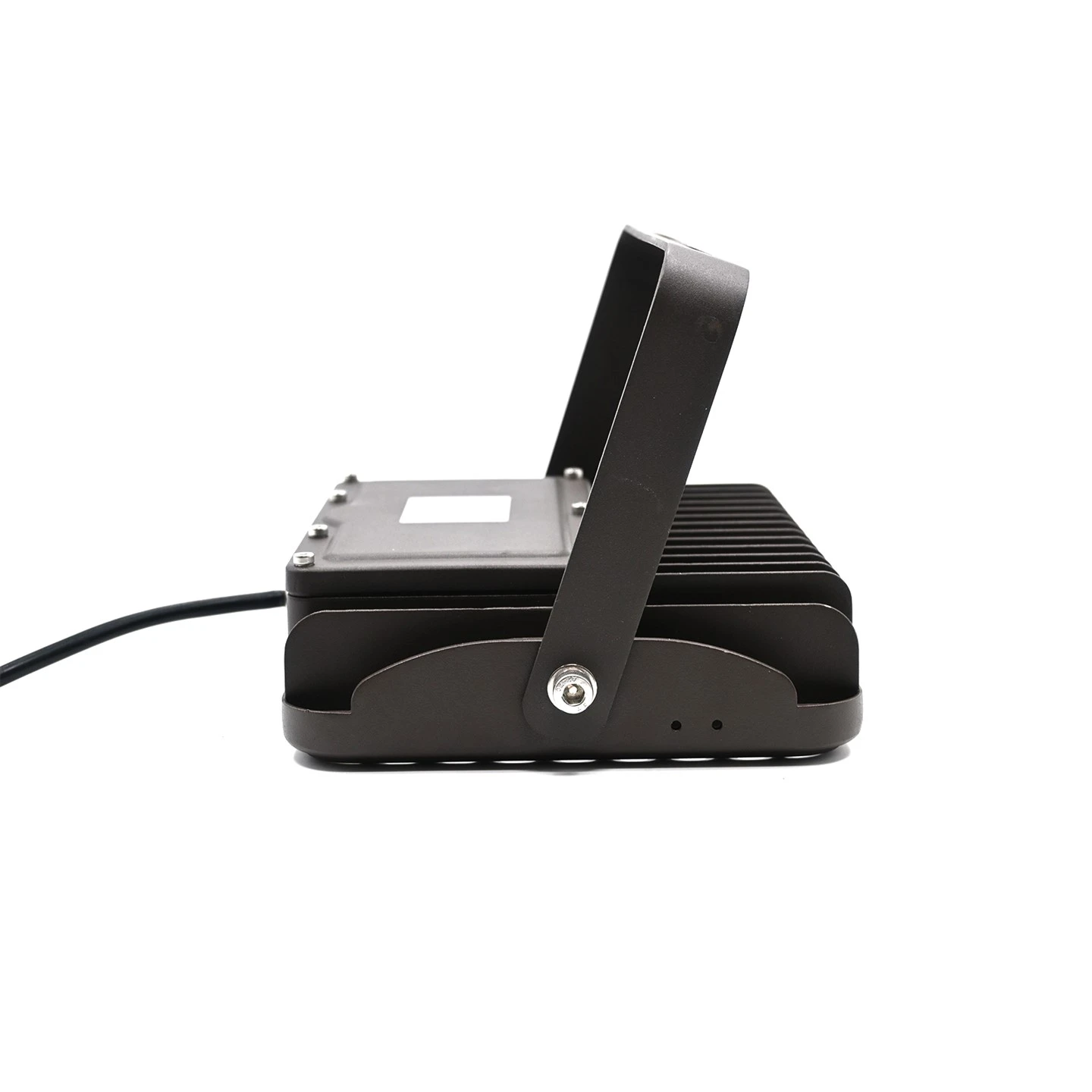

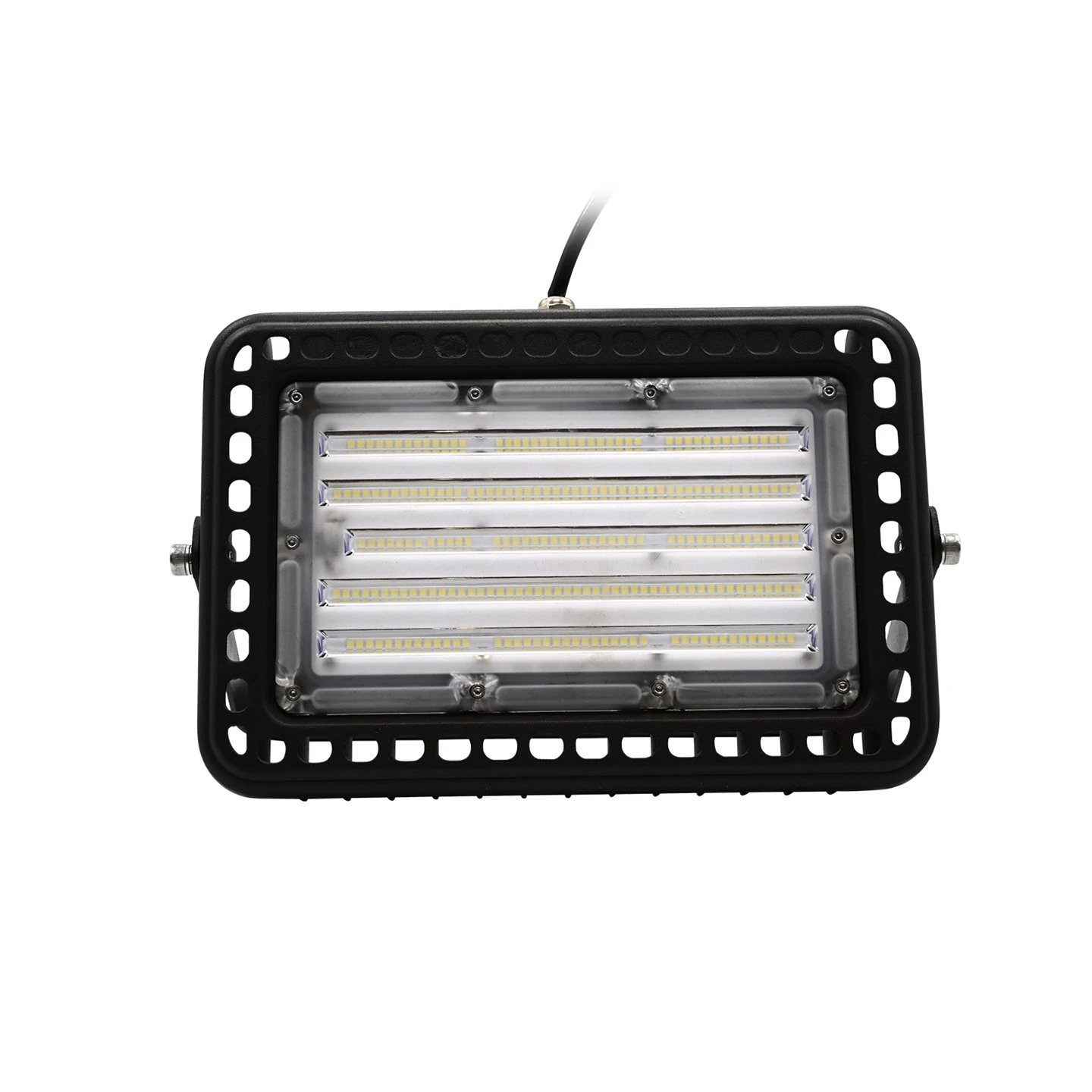

Led Flood Light 100W IP66
MODEL:JR331
POWER: 60W 100W
Input Volt.: AC100-277V DC24V DC48V
Light effect: 140Lm/W
Beam Angle: 60° 120°
Color temperature: 3000-5700K
LED TYPE: SMD 5050
CERTIFICATION: CE/ROHS/IP66/IK09/ISO9001/ISO14001
- Product Description
- Product Features
- Product Details
- Specification
- Photometrics
- Video
- Application Scenarios
- FAQ
- Send Inquiry
- More Products
Product Description
The JR331 Series led outside flood lights offer high-performance lighting solutions, delivering 140Lm/W light efficiency with power options of 60W and 100W. Designed for versatility, these floodlights operate on AC100-277V or DC24V, ensuring global compatibility. The lamps boast a CRI ≥70, providing excellent color rendering across various environments, and a power factor of >0.95 for optimal energy efficiency.
Available in beam angles of 60° and 120°, these lights are suitable for a wide range of applications, from industrial facilities to outdoor spaces such as stadiums, parking lots, and docks. With a color temperature range of 3000K to 5700K, these floodlights offer customizable lighting for various settings. The wide operating temperature range of -40°C to 50°C ensures reliability in challenging environments.
Designed with professional cooling structure technology and efficient heat dissipation, the JR331 Series led outside flood lights features an aluminum die-casting lamp heatsink that improves thermal conductivity and provides an impact level of IK09. The led outside flood lights are built to last, with a service life of up to 50,000 hours, reducing the need for frequent lamp replacements.
The JR331 Seriesled outside flood lights combines advanced design with practical functionality. Its professional cooling system, with both inside and outside air ducts, ensures the lights remain cool under high-performance use. The use of high-quality aluminum die-casting and an IK09 impact rating further enhances durability, making these floodlights ideal for demanding industrial, outdoor, and emergency settings.
Whether installed in industrial plants, ports, parking lots, or used as part of a mobile light tower, the JR331led outside flood lights Series ensures robust and long-lasting illumination. With a variety of installation options and a broad voltage range, the JR331 Series is easy to install, operate, and maintain, offering a reliable lighting solution that saves both time and energy in the long run.
Product Features
- Led Flood Light 100W: Professional cooling structure technology inside and outside air ducts design high efficiency heat dissipation performance.
- High performance aluminum die-casting lamp heatsink with good thermal conductivity impact level can reach Ik09.
- A variety of installation options suitable for a variety of different installation environment.
- Global wide voltage operation, conform to various general standards, easy to replace directly.
- Durable, long service life, up to 50000 hours, no need to change lamps frequently.
- Suitable used for industrial place, stadium, parking lots, ports, docks, mobile light tower, mines, coal plants, fire mobile illumination device etc.
Product Details
Specification
| Model | Power(W) | Module Qty | Light Efficiency | Voltage(V) | CRI(Ra) | Power Factor | Beam Angle | CCT(K) | Ta | N.W/G.W (KG) | Packing size (mm) |
| JR331-60W | 60 | 1 | 140Lm/W |
AC100~277V DC48V |
≥70 | ＞0.95 | 60° 120° |
3000~5700 | -40℃~50℃ | 2.5/2.6 | 248×200×71 |
| JR331-100W | 100 | 1 | 140Lm/W | 3/3.1 | 323×245×75 | ||||||
| Note: Letter "W" in the model no. stands for AC voltage; "DT" stands for DC24V; "DF" stands for DC48V. | |||||||||||
Size
| Size/Model | a | b | c |
| JR331-60W | 240 | 194 | 58 |
| JR331-100W | 315 | 239 | 62 |
Video
Application Scenarios
FAQ
Q: What is the voltage range of yourled outside flood lights?
A: We offer a voltage range of AC100~277V and DC12V/DC24V/DC48V.
Q: How do your products compare to similar products in the market?
A: Our products are highly efficient, lightweight, anti-corrosive, and anti-shock performance.
Q: What certifications have you obtained?
A: Our LED Lights are CSA, SAA, CE, and BIS-approved.
Q: What's the application for yourled outside flood lights?
A: Our LED flood lights are widely used at Diesel/Solar/Hybrid lighting towers, stadiums, Sports fields, Ports, Industrial places, Construction Sites, Docks, Mining Sites etc
Q: What's the luminous efficiency of your led outside flood lights?
A: Our LED Flood light offers 150~200lm/w.
Q: Do you offer a guarantee for the products?
A: Yes,We offer a 2-year warranty for DC LED lights and a 3-year warranty for AC LED lights(If the generator is used for power generation, the warranty period is 3 years; if used with grid power, the warranty period is 5 years)
Q: Can your factory make the lights based on customers' designs?
A: Yes, we offer OEM and ODM service, we can design and produce according to the client's requests, and we have professional engineers for R&D.
Q: Are you a factory or trading company?
A: We are a factory and trading company integration. our sales center and R&D department are located in Shanghai, and the factory is located in Suzhou City. We welcome customers to visit our factory.
