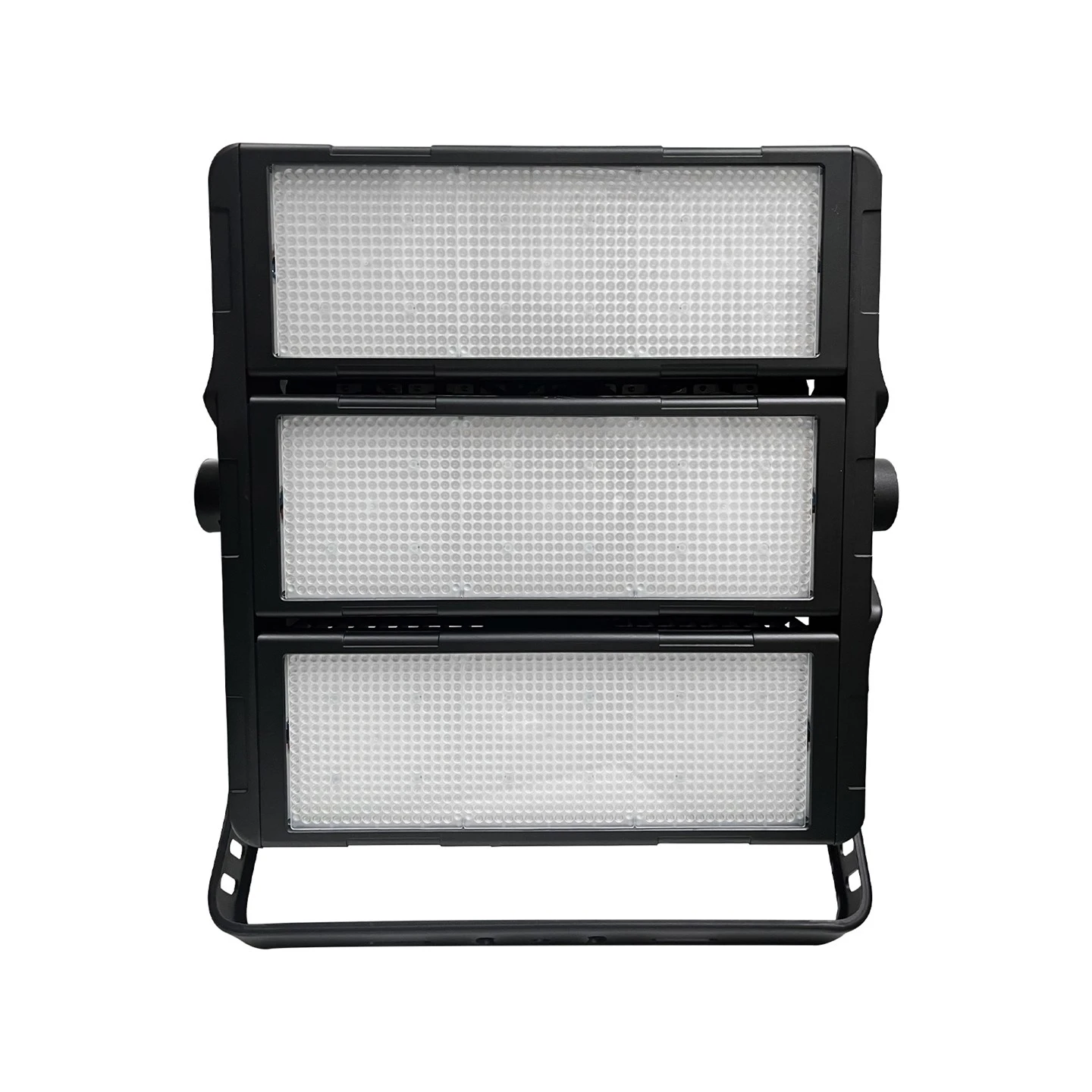

1500 Watt Led Stadium Lights
MODEL: JR506
POWER: 400W 500W 600W 800W 1000W 1200W 1500W 1800W
Input Volt.: AC100-277V 50/60Hz
Light effect: 150Lm/W
Beam Angle: 10° 15° 25° 45° 60° 90° Asymmetrical 60°
Color temperature: 3000-6500K
LED TYPE: SMD 3030
CERTIFICATION: UL/ETL/DLC/TUV/CB/ENEC/CE/SAA/FCC/RoHS/CQC
WARRANTY: 5 YEARS
- Product Description
- Product Features
- Product Details
- Specification
- Photometrics
- Video
- Application Scenarios
- FAQ
- Send Inquiry
- More Products
Product Description
Product Features
- 1500 Watt Led Stadium Lights: Imported Lumileds/OSRAM light source, high brightness, low light decay, long life.
- Driven by international first-line brands, with over-temperature protection, high conversion efficiency, high power factor, high lightning protection and other characteristics (1-10V,DALI2.0).
- ADC12 Aluminum Die-casting Fixture Housing,Corrosion resistant treatment, Anti-rust, excellent thermal management, and long lifes-pan.
- 4mm high strength tempered glass, further reduces the UV and anti-rust, typically designed for coastal areas.
- Using optical PC lens, IK08 anti-collision grade, anti-UV, transmittance of 94%, professional optical light distribution: 10°, 25°, 45°, 60°, 90°, Professional asymmetrical 60°.
- Bracket Installation, operation temperature: -35℃- +50℃.
Specification
| Model | Power(W) | Light Efficiency | Qty of LED | Voltage(V) | CRI(Ra) | Beam Angle | CCT(K) | THD | Power Factor | IK Rating | Driver Brand | N.W/G.W (KG) |
Packing size (mm) |
| JR506-400W | 400 | 150Lm/W | 840PCS*3030 | AC100 -277V 50/60Hz |
>80 | 10° 25° 45° 60° 90° Asymmetrical60° |
3000~6500 | <10% | ＞0.95 | Ik08 | MW/SOSEN | 19.15/21.55 | 748×244×252 |
| JR506-500W | 500 | 150Lm/W | 840PCS*3030 | 19.65/22.05 | 748×244×252 | ||||||||
| JR506-600W | 600 | 150Lm/W | 840PCS*3030 | 20.05/22.55 | 748×244×252 | ||||||||
| JR506-800W | 800 | 150Lm/W | 1680PCS*3030 | 32.00/35.30 | 762×469×320 | ||||||||
| JR506-1000W | 1000 | 150Lm/W | 1680PCS*3030 | 33.00/36.30 | 762×469×320 | ||||||||
| JR506-1200W | 1200 | 150Lm/W | 1680PCS*3030 | 34.00/37.30 | 762×469×320 | ||||||||
| JR506-1500W | 1500 | 150Lm/W | 2520PCS*3030 | 46.00/49.70 | 762×696×320 | ||||||||
| JR506-1800W | 1800 | 150Lm/W | 2520PCS*3030 | 47.30/51.00 | 762×696×320 | ||||||||
| Note: Letter "W" in the model no. stands for AC voltage; "DT" stands for DC24V; "DF" stands for DC48V. | |||||||||||||
Size
Photometrics
Application Scenarios
FAQ
Q: What is the voltage range of your LED flood light?
A: We offer a voltage range of AC100~277V and DC12V/DC24V/DC48V.
Q: How do your products compare to similar products in the market?
A: Our products are highly efficient, lightweight, anti-corrosive, and anti-shock performance.
Q: What certifications have you obtained?
A: Our LED Lights are CSA, SAA, CE, and BIS-approved.
Q: What's the application for your LED flood Light?
A: Our LED flood lights are widely used at Diesel/Solar/Hybrid lighting towers, stadiums, Sports fields, Ports, Industrial places, Construction Sites, Docks, Mining Sites etc
Q: What's the luminous efficiency of your LED Flood Light?
A: Our LED Flood light offers 150~200lm/w.
Q: Do you offer a guarantee for the products?
A: Yes,We offer a 2-year warranty for DC LED lights and a 3-year warranty for AC LED lights(If the generator is used for power generation, the warranty period is 3 years; if used with grid power, the warranty period is 5 years)
Q: Can your factory make the lights based on customers' designs?
A: Yes, we offer OEM and ODM service, we can design and produce according to the client's requests, and we have professional engineers for R&D.
Q: Are you a factory or trading company?
A: We are a factory and trading company integration. our sales center and R&D department are located in Shanghai, and the factory is located in Suzhou City. We welcome customers to visit our factory.
