Led Street Light Outdoor Waterproof
Independent research and development, simple European design style LED street light.
specifications, from 30W-320W full coverage, which can be used for higher wattage LED street lights to meet larger marketdemands.
Modern streamline shape, small size with large wattage, less wind resistance and typhoon resistance.
90% aluminum isinvolved in heat dissipation, the effective area is significantlyincreased, and it can reach lP66 waterproof level.
- Product Description
- Product Features
- Product Details
- Specification
- Photometrics
- Video
- Application Scenarios
- FAQ
- Send Inquiry
- More Products
Product Description
Product Features
- Independent research and development, simple European design style LED street light.
- Specifications, from 30W-320W full coverage, which can be used for higher wattage LED street lights to meet larger marketdemands.
- Modern streamline shape, small size with large wattage, less wind resistance and typhoon resistance.
- 90% aluminum isinvolved in heat dissipation, the effective area is significantlyincreased, and it can reach lP66 waterproof level.

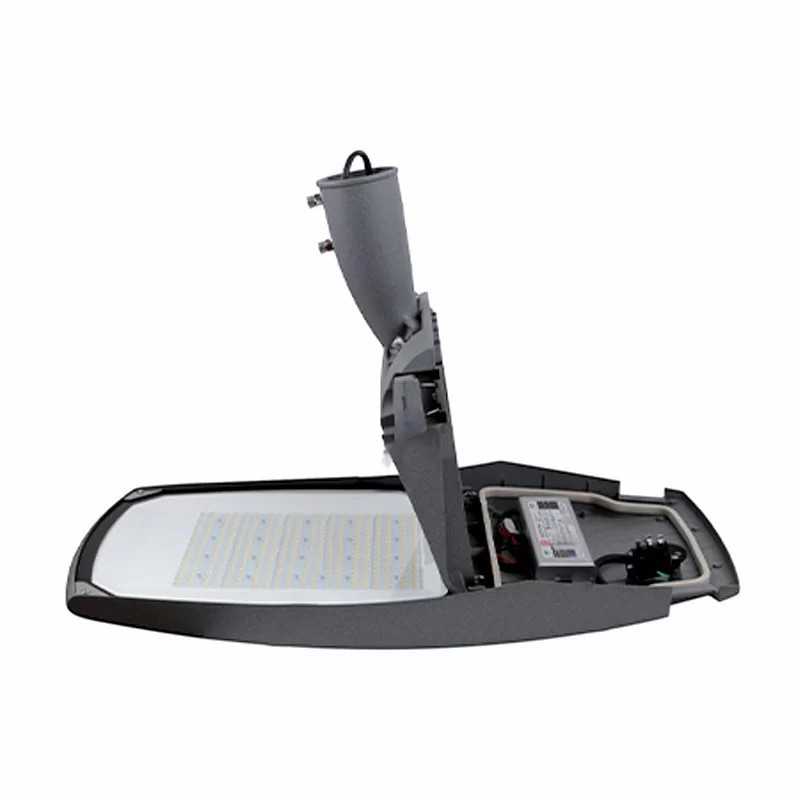

- Buckles on the upper back are used to open the power supply cavity without tools, which can be maintained with (electricity)poweron, check the power supply and the internal controller, which is convenient for maintenance' a screwdriver can replace theLED national standard module and power supply, which is more convenient for disassembly and maintenance.
- The overall disassembly and maintenance, directly disassemble the main body with the PCBs and power supply, which is moreconvenient for productmaintenance.
- There are NEMA and ZHAGAinterfaces on the top and the ZHAGA interfaces on the bottom, which can add radar motion sensor andphotocell controlsystem.
- Various sizes oflamp head arm can be selected, the arm of the amp holder can be adjusted by up-down 15 degrees, and it can beinstalled vertically at 90 degrees.
Product Details
Specification
Parameter
| Model | Powerr(W) | Light Efficiency | Voltage(V) | CRI(Ra) | Power Factor | CCT(K) | EnvironmentTemperature |
| SL04-30W | 30 | 100-150Lm/W | AC100-277V DC24V |
＞70 | ＞0.95 | 3000~6000 | -40~50℃ |
| SL04-60W | 60 | ||||||
| SL04-80W | 80 | ||||||
| SL04-100W | 100 | ||||||
| SL04-120W | 120 | ||||||
| SL04-150W | 150 | ||||||
| SL04-180W | 180 | ||||||
| SL04-200W | 200 | ||||||
| SL04-250W | 250 | ||||||
| SL04-300W | 300 |
Size(mm)
| size/model | a | b | c |
| 30W | 555 | 210 | 143 |
| 60W | 555 | 210 | 143 |
| 80W | 645 | 257 | 147 |
| 100W | 645 | 257 | 147 |
| 120W | 790.4 | 305 | 147 |
| 150W | 790.4 | 305 | 147 |
| 180W | 790.4 | 305 | 147 |
| 200W | 790.4 | 305 | 147 |
| 250W | 890 | 361 | 163 |
| 300W | 890 | 361 | 163 |
Application Scenarios
FAQ
Q: Why should you choose solar LED street lights?
A: Solar LED street lights have several advantages, including energy-saving, environmental friendliness, easy installation, and maintenance-free operation.
Q: How do you choose solar LED street lights?
A: When selecting solar LED street lights, we consider the following factors: 1. The height of the pole; 2. The required working time of the solar street light each night; 3. The proportion of rainy and cloudy days in the installation location.
Q: Can I place a sample order for the solar LED street light?
A: Certainly, you can place a sample order to test the quality of the solar street light. However, please note that the price of the sample may differ from that of a large quantity order.
Q: How long can solar power be stored?
A: The integrated solar street light can store solar power for up to 6 months after the batteries are fully charged. It is recommended to periodically examine and charge the batteries after long periods of transportation to prevent damage.
Q: How do I choose the system voltage? 12V or 24V for normal street lights?
A: We can design the system for either 12V or 24V for solar street lights, or 100-277V for normal street lights.
Q: What should be considered during installation?
A: During installation, please ensure that the surface of the solar panel is exposed to direct sunlight. Additionally, keep the solar panel away from any obstructions such as buildings or trees that may cast shadows.
Q: How is the luminance of the solar street light controlled?
A: Our solar street lights utilize microwave sensor control and brightness sub-regulation. The brightness sub-regulation allows for the adjustment of brightness based on the time of day. For example, from 6:00 p.m. to 12:00 p.m., the brightness is set at 100%, while from 0:00 a.m. to 06:00 a.m., it is set at 20% or 30%. This feature allows our product to replace conventional LED street lights.
Q: What is the recommended mounting height?
A: We recommend a mounting height of 3-5m for solar street lights with a power rating of 20W, 30W, and 40W, and a mounting height of 6-8m for solar street lights with a power rating of 50W, 60W, and 80W.
Q: What is the recommended distance?
A: For the recommended distance, we suggest 10-15m for solar street lights with a power rating of 20W, 30W, and 40W, and 20-25m for solar street lights with a power rating of 50W, 60W, and 80W.
