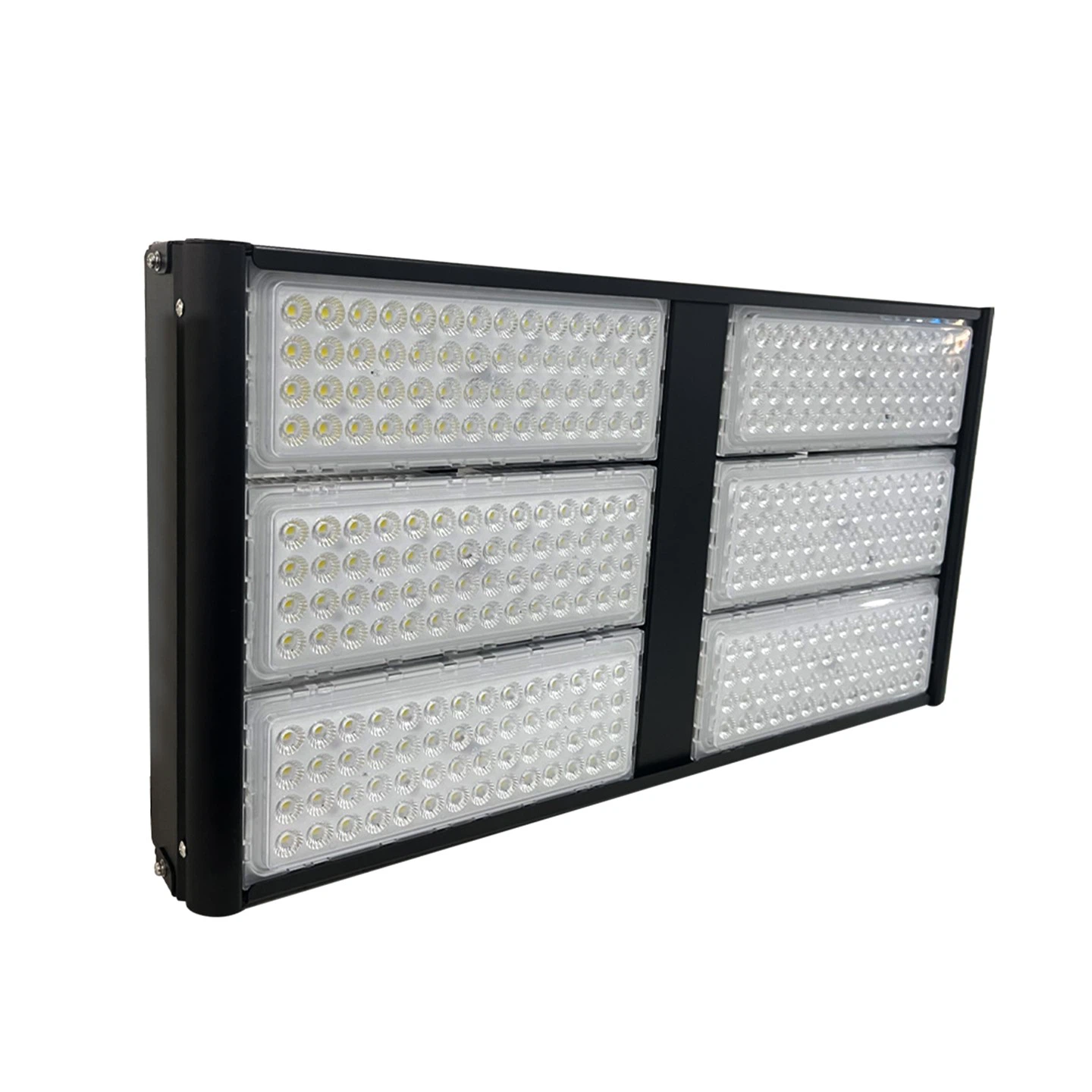

Heavy Duty LED Fire Truck Scene Light
MODEL: JR606
POWER: 150W 300W 400W 500W 600W 1000W
Input Volt.: AC100-277V DC24V DC48V
Light effect: 160Lm/W
LED TYPE: SMD5050
Color temperature: 3000-6000K
CERTIFICATION: CE/ROHS/IP67/IK08/ISO9001/ISO14001
- Product Description
- Product Features
- Product Details
- Specification
- Photometrics
- Video
- Application Scenarios
- FAQ
- Send Inquiry
- More Products
Product Description
The JR606 lighting fixture uses professional full-structure heat dissipation technology, combined with internal and external ventilated channels for efficient cooling; it is equipped with various optical-grade PC lenses, providing uniform light without glare, meeting different light distribution requirements. The product supports flexible expansion and multiple installation methods, adapts to a wide voltage range, complies with general standards, and is easy to replace; it is robust and durable, with a service life of up to 50,000 hours, requiring no frequent replacement, and is specially designed for medium-sized special vehicles for communication command, lighting, rescue, and firefighting.
Product Features
- Professional heat dissipation structure, full-structure heat dissipation technology, with an internal and external transparent air duct design, achieving high-efficiency heat dissipation performance.
- Variety of lens option scan meet the light distribution requirements of diferent application envionments, optical grade PC material lens has uniform light output and no glare.
- Freely assembled different numbers of modules for different power highly adaptable functionality.
- A variety of installation options suitable for a variety of different installation environment.
- Global wide voltage operation, conform to various general standards, easy to replace directly.
- Durable, long service life, up to 50000 hours, no need to change light fixture frequently.
- Suitable for use on medium-sized special vehicles such as communication command vehicles, lighting vehicles, rescue vehicles, and fire trucks.
Product Details
Full-structure heat dissipation
Professional heat dissipation structure, full-structure heat dissipation technology, with an internal and external transparent air duct design, achieving high-efficiency heat dissipation performance.
Modular design
Modular design allows for easy maintenance and meets varying power needs, reducing maintenance costs.
Multi-scenario use
Suitable for use on medium-sized special vehicles such as communication command vehicles, lighting vehicles, rescue vehicles, and fire trucks.
Specification
| Model | Power(W) | Module Qty | Light Efficiency | Voltage(V) | CRI(Ra) | CCT(K) | Ta | Power Factor | N.W (KG) |
Packing size (mm) |
|
| JR606-150W | 150 | 160Lm/W | AC100-277V DC24V DC48V |
≥70 | 3000~6000 | -40~60℃ | ＞0.95 | 3.5 | 312×112×116 | ||
| JR606-300W | 300 | 170Lm/W | 5.0 | 312×217×120 | |||||||
| JR606-400W | 400 | 160Lm/W | 6.5 | 312×320×125 | |||||||
| JR606-500W | 500 | 160Lm/W | 9.0 | 312×423×125 | |||||||
| JR606-600W | 600 | 160Lm/W | 9.5 | 312×423×130 | |||||||
| JR606-1000W | 1000 | 150Lm/W | 19.5 | 693×400×158 | |||||||
| Note: Letter "W" in the model no. stands for AC voltage; "DF" stands for DC48V. | |||||||||||
Size
| Size/Model | a(mm) | b(mm) | c(mm) |
| JR606-150W |
312 |
112 | 116 |
| JR606-300W | 312 | 217 | 120 |
| JR606-400W | 312 | 320 | 125 |
| JR606-500W | 312 | 423 | 125 |
| JR606-600W | 312 | 423 | 130 |
| JR606-1000W | 693 | 400 | 158 |
Photometrics
Video
Application Scenarios
FAQ
Q: What is the voltage range of your LED flood light fixtures?
A: We offer a voltage range of AC100~277V and DC12V/DC24V/DC48V.
Q: How do your products compare to similar products in the market?
A: Our products are highly efficient, lightweight, anti-corrosive, and anti-shock performance.
Q: What certifications have you obtained?
A: Our LED Lights are CSA, SAA, CE, and BIS-approved.
Q: What's the application for your LED flood Light?
A: Our LED flood lights are widely used at Diesel/Solar/Hybrid lighting towers, stadiums, Sports fields, Ports, Industrial places, Construction Sites, Docks, Mining Sites etc
Q: What's the luminous efficiency of your LED flood light fixtures?
A: Our LED Flood light offers 150~200lm/w.
Q: Do you offer a guarantee for the products?
A: Yes,We offer a 2-year warranty for DC LED lights and a 3-year warranty for AC LED lights(If the generator is used for power generation, the warranty period is 3 years; if used with grid power, the warranty period is 5 years)
Q: Can your factory make the lights based on customers' designs?
A: Yes, we offer OEM and ODM service, we can design and produce according to the client's requests, and we have professional engineers for R&D.
Q: Are you a factory or trading company?
A: We are a factory and trading company integration. our sales center and R&D department are located in Shanghai, and the factory is located in Suzhou City. We welcome customers to visit our factory.
