Led Floodlight Dimmable
video

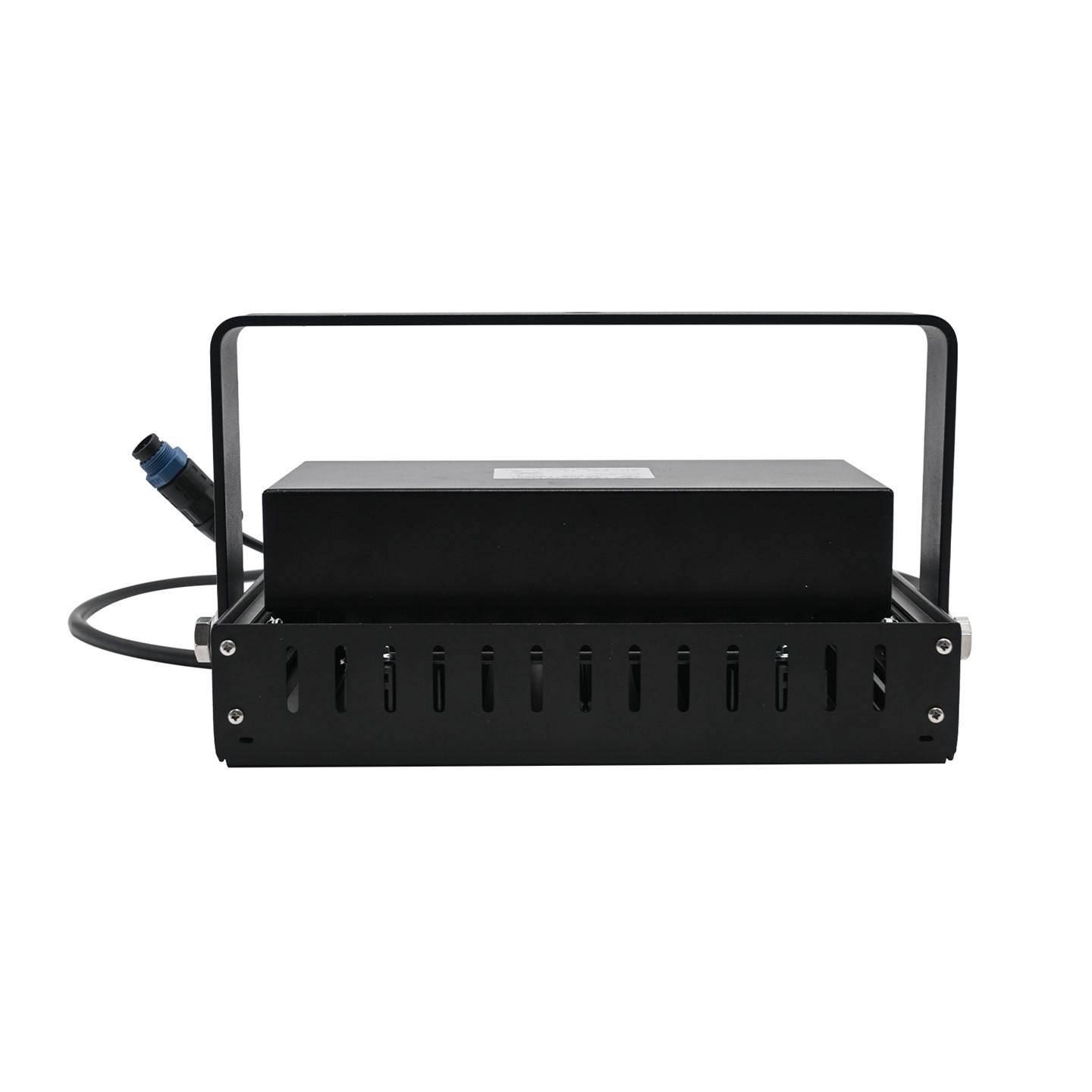

Led Floodlight Dimmable

Led Floodlight Dimmable

Model: JR329
Power: 100W-320W
Efficacy: 160/170Lm/W
Voltage: AC100-277V/DC24V/DC48V
CRI: ≥70/80/90
Beam Angle: 60°
CCT: 2200K-6000K
LED Chips: SMD3030

  • Product Description
  • Product Features
  • Product Details
  • Specification
  • Photometrics
  • Video
  • Application Scenarios
  • FAQ
  • Send Inquiry
  • More Products

Product Description



The JR329 Series Outdoor field lighting is built for performance, offering power options from 100W to 320W and light efficiencies up to 170 lm/W. Designed for versatility, these floodlights provide stable, efficient lighting across various applications, including mobile light towers, industrial sites, and outdoor work areas. With a high CRI (≥70) and color temperatures between 2200K and 6000K, they deliver clear, accurate illumination suitable for both precision tasks and wide-area lighting.



Each model in the JR329 Series Outdoor field lighting incorporates extruded aluminum profile components for efficient heat conduction, ensuring LED chip stability and extending service life. The outdoor field lighting is IP66-rated, offering robust protection against dust and water, making it ideal for rugged outdoor conditions. Featuring professional optical lenses, the JR329 outdoor field lighting maximizes light output while maintaining even distribution, meeting high seismic requirements for mobile installations. A 360-degree adjustable design lets users position these floodlights precisely as needed, adding flexibility in challenging settings.



The JR329 Outdoor Field Lighting Series showcases JR Lighting's dedication to resilient, adaptable lighting solutions crafted to endure tough conditions. Built on an extruded aluminum profile, these lights are engineered for efficient cooling and structural stability. Special screw-fixing methods ensure the lights remain secure even under high-vibration conditions, such as those encountered with mobile light towers and heavy machinery.



Every JR329 Outdoor field lighting reflects a commitment to innovation and durability, with IP66-rated housing and professional-grade optical lenses that enhance light quality and operational safety. The 360-degree rotation capability provides unparalleled flexibility, enabling precise lighting adjustment across diverse applications-from construction sites to industrial workspaces.



Product Features



  • LED Floodlight Dimmable: The main heat-dissipation components are integrated with extruded aluminum, which provides efficient heat conduction and dissipation, effectively reducing LED chip temperature and ensuring LED service life.
  • The lens screw uses a special, super shock-proof fixing method to meet the high seismic requirements of the mobile lighthouse car and other applications.
  • Excellent optical design uses professional optical lenses, with light efficiency up to 170lm/W.
  • The IP66 protection level of the whole lamp meets the harsh external environment requirements for indoor and outdoor work, and the lamp is safer to use.
  • The lamp can be rotated 360 degrees and freely adjusted to meet the needs of the lighthouse car scene



Product Details



JR329 Integrated extruded aluminum material
Integrated extruded aluminum material
The lamp's main heat-dissipation component is integrated extruded aluminum, which provides efficient heat conduction and dissipation, effectively reducing the LED chip temperature and ensuring the LED's service life.
JR329 Lens screw adopts special fixing method
Lens screw adopts a special fixing method
The lens screw uses a special, super shock-proof fixing method to meet the requirements of high-intensity vibration situations.
JR329 Excellent optical design
Excellent optical design

Excellent optical design, using professional optical lenses, with the light output up to 170Lm/W.
JR329 IP66 protection level
IP66 protection level
The entire lamp has an IP66 protection level, meeting harsh external-environment requirements for indoor and outdoor work and making the lamp safer to use.
JR329 High-strength steel bracket, 360° projection design
High-strength steel bracket, 360° projection design
Adopts a high-strength steel bracket, 360° projection design, and 304 stainless steel fasteners throughout.
JR329 Tool-free connector
Tool-free connector
It adopts a tool-free connector, easy to maintain, and is highly waterproof, dustproof, and shockproof.

Specification



Model Power(W) Light Efficiency Voltage(V) CRI(Ra) Power Factor Beam Angle CCT(K) Ta N.W/G.W
(KG)
Packing size
(mm)
JR329-100W 100 170Lm/W

AC100~277V
DC24V

DC48V

≥70/80/90 >0.95 60° 2200~6000 -40℃~50℃ 2.8/3.3 335×220×125
JR329-150W 150 160Lm/W 2.8/3.3 335×220×125
JR329-200W 200 170Lm/W 4.6/5.1 335×375×125
JR329-250W 250 170Lm/W 5.2/5.7 335×375×125
JR329-300W 300 160Lm/W 5.2/5.7 335×375×125
JR329-320W 320 160Lm/W 5.2/5.7 335×375×125
Note: Letter "W" in the model no. stands for AC voltage; "DT" stands for DC24V; "DF" stands for DC48V.



329



Size (mm)





product-1032-515

Size/Model a b c
JR329-100W 300 206 74
JR329-150W 300 206 74
JR329-200W 300 363 74
JR329-250W 300 363 74
JR329-300W 300 363 74



Photometrics



product-1776-635



Video





Application Scenarios

Light Tower
Light Tower
Port Terminal
Port Terminal
Stadium
Stadium
High Pole Light
High Pole Light

FAQ



Q: What is the voltage range of your outdoor field lighting?

A: We offer a voltage range of AC100~277V and DC12V/DC24V/DC48V.

Q: How do your products compare to similar products in the market?

A: Our products are highly efficient, lightweight, anti-corrosive, and have anti-shock performance.

Q: What certifications have you obtained?

A: Our LED Lights are CSA, SAA, CE, and BIS-approved.

Q: What's the application for your outdoor field lighting?

A: Our LED flood lights are widely used at Diesel/Solar/Hybrid lighting towers, stadiums, Sports fields, Ports, Industrial places, Construction Sites, Docks, Mining Sites, etc

Q: What's the luminous efficiency of your outdoor field lighting?

A: Our LED Flood light offers 150~200lm/w.

Q: Do you offer a guarantee for the products?

A: Yes, we offer a 2-year warranty for DC LED lights and a 3-year warranty for AC LED lights(If the generator is used for power generation, the warranty period is 3 years; if used with grid power, the warranty period is 5 years)

Q: Can your factory make the lights based on customers' designs?

A: Yes, we offer OEM and ODM services. We can design and produce according to the client's requests, and we have professional engineers for R&D.

Q: Are you a factory or trading company?

A: We are an integrated factory and trading company. Our sales center and R&D department are located in Shanghai, and the factory is located in Suzhou City. We welcome customers to visit our factory.
