200W Billboard Led Flood Light
Model: JR306
Power: 50W/100W/150W/200W
Efficacy: 120Lm/W
Voltage: AC100-277W/DC24V/DC48V
CRI: ≥70/80/90
Beam Angle: 30°/60°/90°
CCT: 2200-6000K
LED Chips: SMD2835
- Product Description
- Product Features
- Product Details
- Specification
- Photometrics
- Video
- Application Scenarios
- FAQ
- Send Inquiry
- More Products
Product Description
The JR306 series stadium flood lights provide powerful, adaptable lighting solutions ranging from 50W to 200W, with light efficiency rated at an impressive 120 lm/W. Ideal for demanding outdoor and industrial applications, this series operates within an AC voltage range of 100-277V, offering consistent performance even in environments with fluctuating power supply. With a color rendering index (CRI) above 70, these stadium flood lights deliver natural color accuracy, ensuring vivid lighting that enhances visibility. The range's options for narrow to wide beam angles (30°, 60°, and 90°) allow users to direct light precisely where it's needed, enhancing safety and productivity.
Designed with a color temperature range of 2200K to 6000K, the JR306 series stadium flood lights provide versatile lighting for different applications-from cool white for crisp security lighting to warmer tones for outdoor events. Each stadium flood light is built to withstand temperature extremes from -40℃ to 50℃, with a robust design that ensures reliable performance in both hot and cold climates. The JR306 series Stadium LED flood lights are also equipped with a power factor of over 0.95, maximizing energy efficiency and operational stability, making them an ideal choice for large-scale installations.
Product Features

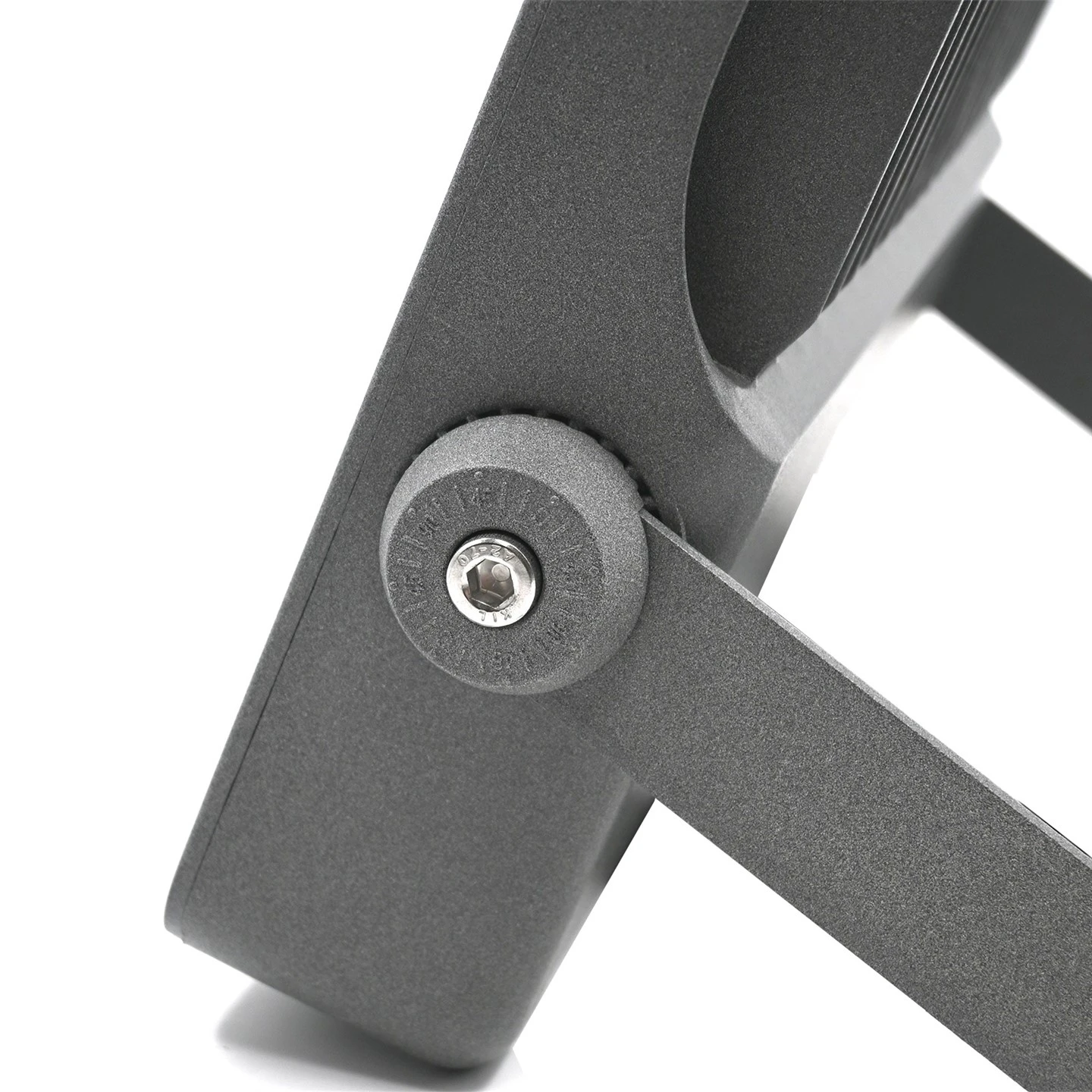

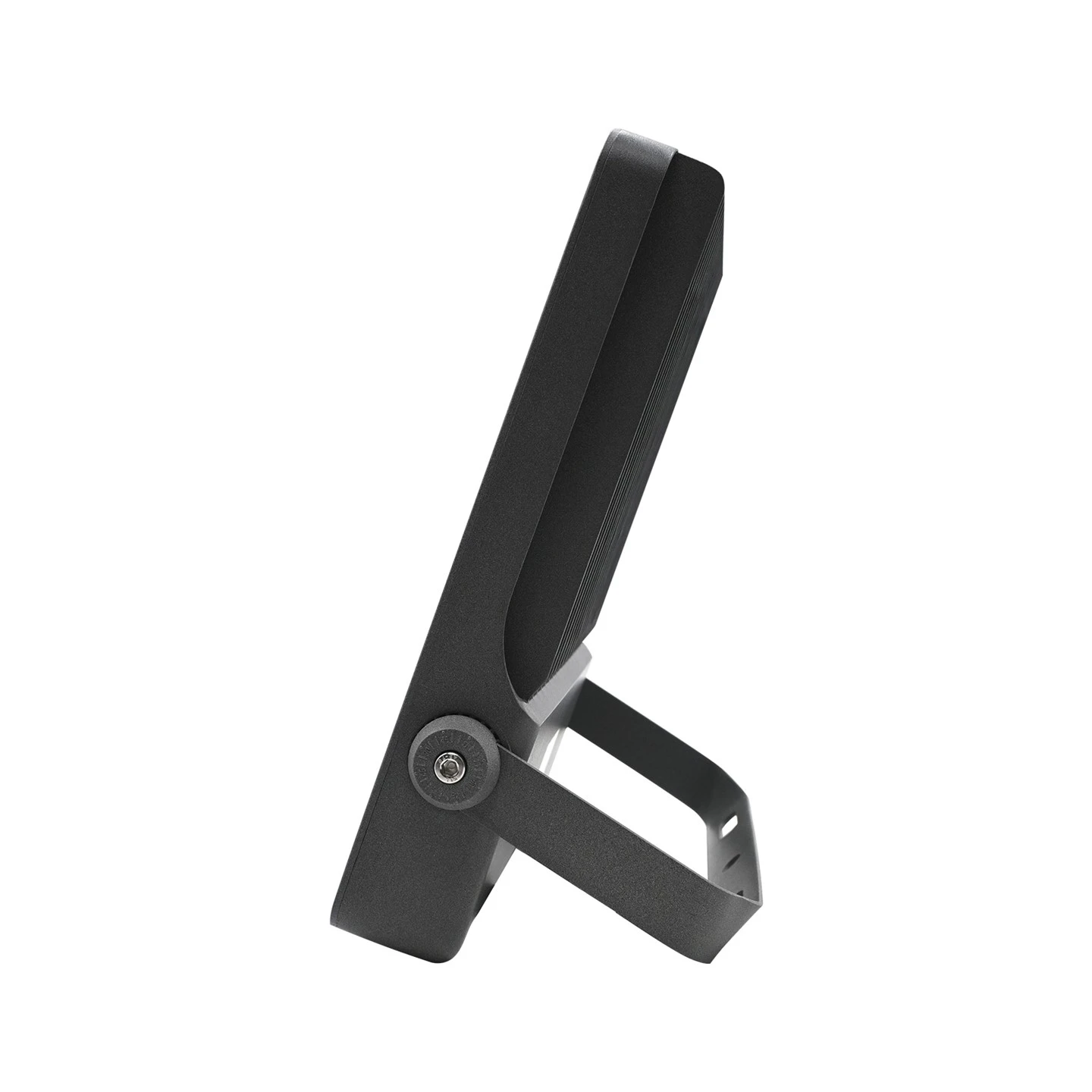

- 50-200 Watt LED Flood Light: Tempered glass face cover, waterproof silicone ring, diagonal bracket design, more convenient installation.
- ADC12 die-cast aluminum housing with thermal conductivity up to 96W/M.K.
- High-temperature-resistant nano-material reflector, anti-UV, long-term use without yellowing.
- High-brightness 2835 patch light source, light efficiency up to 120Lm/W.
Product Details
Specification
| Model | Power(W) | Light Efficiency | Voltage(V) | CRI(Ra) | Power Factor | Beam Angle | CCT(K) | Ta | N.W/G.W (KG) |
Packing size (mm) |
|
| JR306-50W | 50 | 120Lm/W |
AC100~277V DC24V DC48V |
≥70/80/90 | ＞0.95 | 30° 60° 90° |
2200~6000 | -40℃~50℃ | 1.2/1.3 | 228×273×49 | |
| JR306-100W | 100 | 120Lm/W | 2.3/2.4 | 276×322×55 | |||||||
| JR306-150W | 150 | 120Lm/W | 3.2/3.4 | 326×376×59 | |||||||
| JR306-200W | 200 | 120Lm/W | 4.5/4.6 | 361×419×63 | |||||||
| Note: Letter "W" in the model no. stands for AC voltage; "DT" stands for DC24V; "DF" stands for DC48V. | |||||||||||
Size (mm)
| Size/Model | a | b | c |
| JR306-50W | 224 | 263 | 45 |
| JR306-100W | 269 | 315 | 50 |
| JR306-150W | 322 | 370 | 56 |
| JR306-200W | 352 | 416 | 58 |
Photometrics
Application Scenarios
FAQ
Q: What is the voltage range of youroutdoor reflector?
A: We offer a voltage range of AC100~277V and DC12V/DC24V/DC48V.
Q: How do your products compare to similar products in the market?
A: Our products are highly efficient, lightweight, anti-corrosive, and have anti-shock performance.
Q: What certifications have you obtained?
A: Our LED Lights are CSA, SAA, CE, and BIS-approved.
Q: What's the application for your Stadium flood lights?
A: Our LED flood lights are widely used at Diesel/Solar/Hybrid lighting towers, stadiums, Sports fields, Ports, Industrial places, Construction Sites, Docks, Mining Sites, etc
Q: What's the luminous efficiency of your stadium flood lights?
A: Our LED Flood light offers 150~200lm/w.
Q: Do you offer a guarantee for the products?
A: Yes, we offer a 2-year warranty for DC LED lights and a 3-year warranty for AC LED lights(If the generator is used for power generation, the warranty period is 3 years; if used with grid power, the warranty period is 5 years)
Q: Can your factory make the lights based on customers' designs?
A: Yes, we offer OEM and ODM service. Also, we can design and produce according to the client's requests, and we have professional engineers for R&D.
Q: Are you a factory or trading company?
A: We are a factory and trading company integration. Our sales center and R&D department are located in Shanghai, and the factory is located in Suzhou City. We welcome customers to visit our factory.
