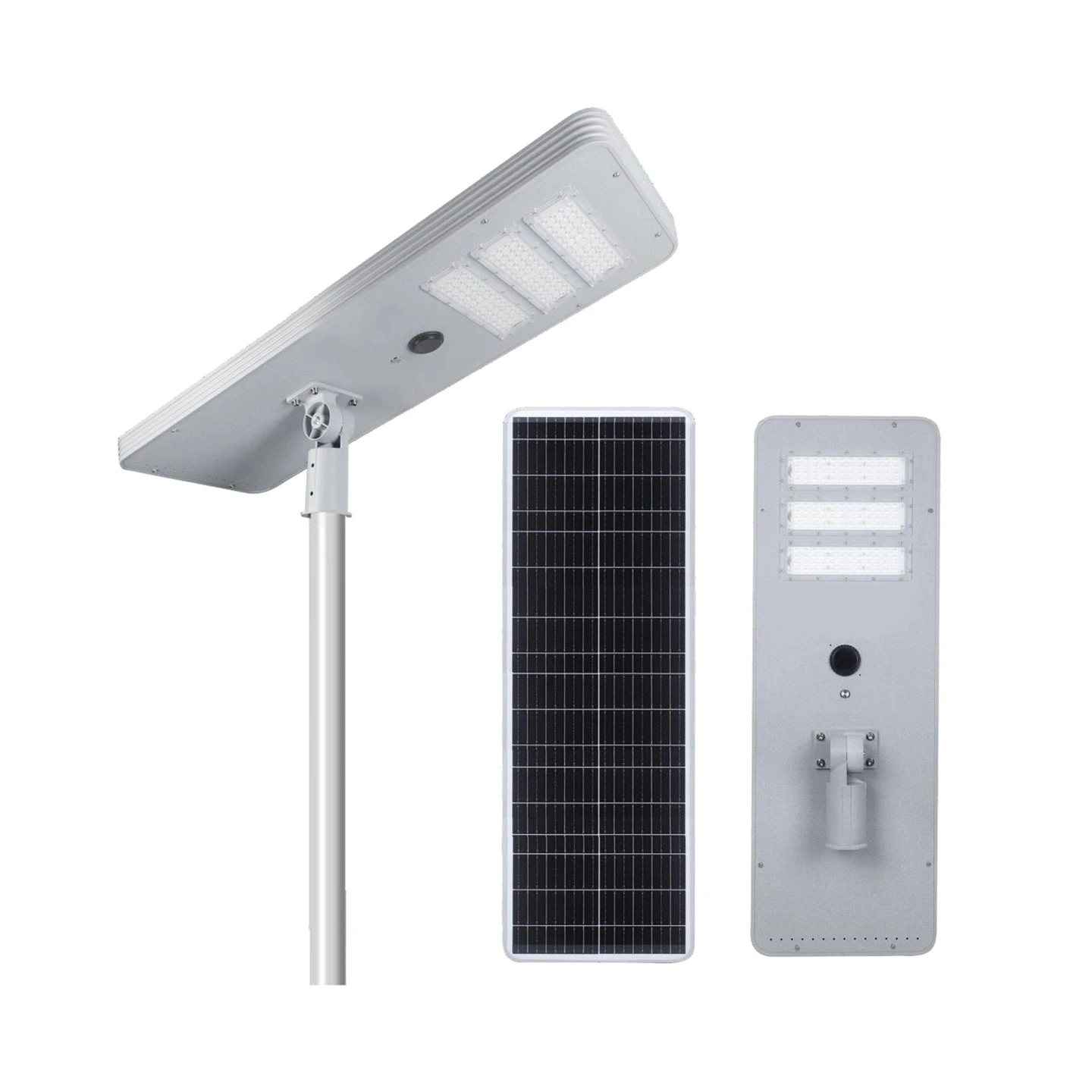

Integrated Street Light
MODEL: SSL33 Watt: 60W 80W LED Chips: 3030 Mono Solar Panel: Monocrystalline silicon photovoltaic panels Controller: MPPT Controller Light Efficiency: 120 Lm/W Beam Angle: 70° 140° Color Temperature: 3000K - 6500K Temperature: -20°C ~ +60°C
- Product Description
- Product Features
- Product Details
- Specification
- Photometrics
- Video
- Application Scenarios
- FAQ
- Send Inquiry
- More Products
Product Description
Product Features
- Integrated Street Light:Designed by a professional industrial design team, integrating solar panels, Led sources, controller,battery, human body induction, and housing.
- Adjustable angle mounting bracket, suitable for a variety of modeling lamp pole installation methods.
- Intelligent power adjustment, automatic weather judgment, reasonable planning of discharge rules.
- Intelligent charging and discharging management, soft and hard double protection of charging and discharging andintelligent equalization technology, battery cycles more than 2000 times.
- High efficiency LED chips can reach 120LM/W, which is more than twice the average brightness of ordinary LED light sources with aluminous angle of 140 degrees, and a wider irradiation area.
- The whole lamp adopts modular minimalist design, easy disassembly, installation, and transportation.
Specification
Parameter
| Model | Power(W) | Mono Solar Panel | LifePO4 Battery | Light Source | Color Temperature | Light Efficiency | Working Time | Working Temperature | Beam angle | Battery Power Indicators | Solar panel life/Lithium battery life | Mounting Height | Installation spacing |
| SSL33-60W | 60 | 16V 60W | 11.1V/20AH | 3030/144PCS | 3000K-6500K | 120Lm/W | 12hours3‐5 cloudy/ rainy days | ‐20℃－+60℃ | 70° +140° | 100%‐75%‐50%‐30% | 10years/5years | 5-7m | 20-25m |
| SSL33-80W | 80 | 15V 80W | 11.1V/30AH | 3030/192PCS | 6-8m | 25-30m |
Product Details
Size(mm)
Application Scenarios
Solar street lightFAQ
Q: Why should you choose solar LED street lights?
A: Solar LED street lights have several advantages, including energy-saving, environmental friendliness, easy installation, and maintenance-free operation.
Q: How do you choose solar LED street lights?
A: When selecting solar LED street lights, we consider the following factors: 1. The height of the pole; 2. The required working time of the solar street light each night; 3. The proportion of rainy and cloudy days in the installation location.
Q: Can I place a sample order for the solar LED street light?
A: Certainly, you can place a sample order to test the quality of the solar street light. However, please note that the price of the sample may differ from that of a large quantity order.
Q: How long can solar power be stored?
A: The integrated solar street light can store solar power for up to 6 months after the batteries are fully charged. It is recommended to periodically examine and charge the batteries after long periods of transportation to prevent damage.
Q: How do I choose the system voltage? 12V or 24V for normal street lights?
A: We can design the system for either 12V or 24V for solar street lights, or 100-277V for normal street lights.
Q: What should be considered during installation?
A: During installation, please ensure that the surface of the solar panel is exposed to direct sunlight. Additionally, keep the solar panel away from any obstructions such as buildings or trees that may cast shadows.
Q: How is the luminance of the solar street light controlled?
A: Our solar street lights utilize microwave sensor control and brightness sub-regulation. The brightness sub-regulation allows for the adjustment of brightness based on the time of day. For example, from 6:00 p.m. to 12:00 p.m., the brightness is set at 100%, while from 0:00 a.m. to 06:00 a.m., it is set at 20% or 30%. This feature allows our product to replace conventional LED street lights.
Q: What is the recommended mounting height?
A: We recommend a mounting height of 3-5m for solar street lights with a power rating of 20W, 30W, and 40W, and a mounting height of 6-8m for solar street lights with a power rating of 50W, 60W, and 80W.
Q: What is the recommended distance?
A: For the recommended distance, we suggest 10-15m for solar street lights with a power rating of 20W, 30W, and 40W, and 20-25m for solar street lights with a power rating of 50W, 60W, and 80W.
