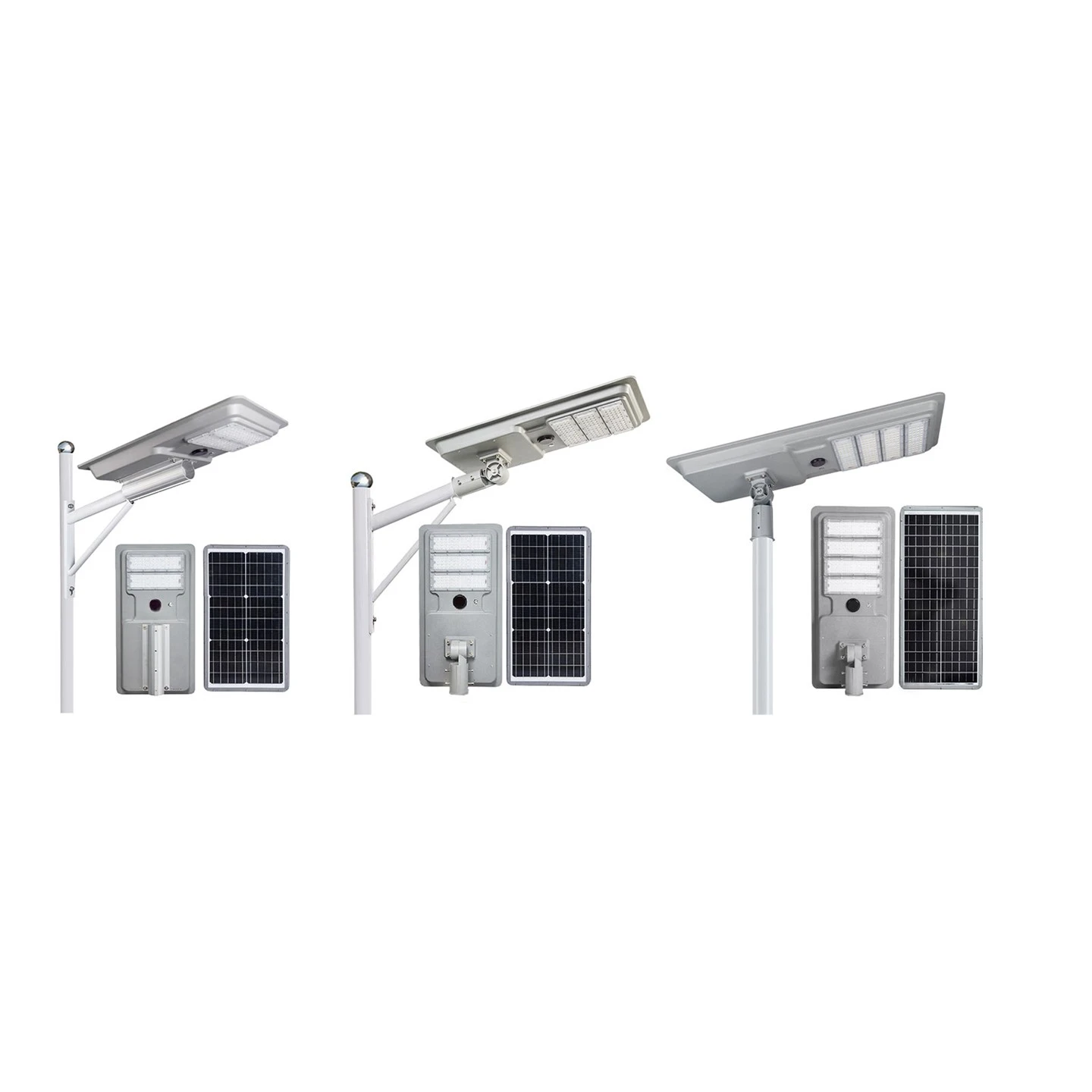

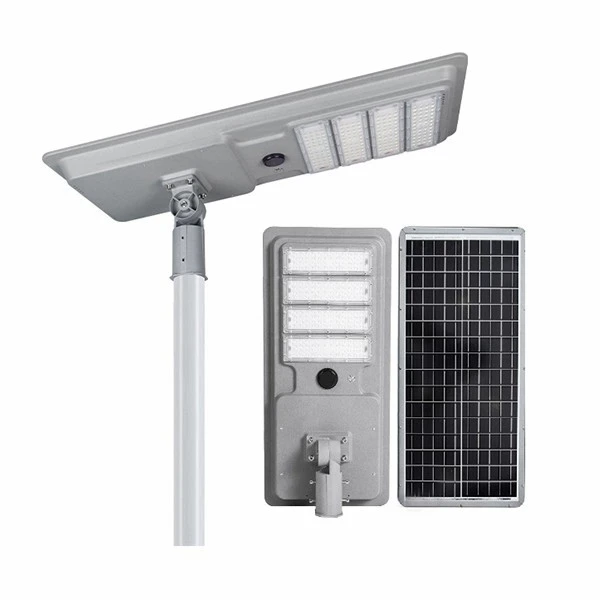

Inbuilt Battery Solar Street Light
MODEL: SSL34
Watt: 20W 25W 30W
LED Chips: SMD3030
Mono Solar Panel: (5V/18V)(25W/30W/50W)
LifePO4 Battery: (5V)144WH/192WH/240WH/(18V)192WH/230WH/307WH
Controller: MPPT Controller
Light Efficiency: 150 Lm/W
Beam Angle: 70 x 140°
Color Temperature: 3000K - 6500K
Temperature: -20°C ~ +60°C
- Product Description
- Product Features
- Product Details
- Specification
- Photometrics
- Video
- Application Scenarios
- FAQ
- Send Inquiry
- More Products
Product Description
Product Features
- Inbuilt Battery Solar Street Light: Designed by a professional industrial design team, integrating solar panels, Led sources, controller,battery, human body induction, and housing.
- Adjustable angle mounting bracket, suitable for a variety of modeling lamp pole installation methods.
- Intelligent power adjustment, automatic weather judgment, reasonable planning of discharge rules.
- Intelligent charging and discharging management, soft and hard double protection of charging and discharging andintelligent equalization technology, battery cycles more than 2000 times.
Specification
| Model | Power(W) | Mono Solar Panel | LifePO4 Battery | Light Source | Luminous flux | Color Temperature | Light Efficiency | Working Time |
Working Temperature |
Beam angle |
Battery Power Indicators |
Solar panel life/ Lithium battery life |
Mounting Height |
Installation spacing |
N.W/G.W (KG) |
Packing size (mm) |
| SSL34-2 | 20 | 5V 25W | 3.2V/ 45AH | 3030/96PCS | ≥3000Lm | 3000K-6500K | 150Lm/W | 12hours3‐5 cloudy/ rainy days | ‐20℃－+60℃ | 70° ×140° | 100%‐75%‐50%‐30% | 10years/5years | 5-6m | 15-20m | 6.0/6.5 | 715×425×115 |
| SSL34-3 | 25 | 5V 30W | 3.2V/60AH | 3030/144PCS | ≥3750Lm | 7-8m | 20-25m | 9.0/9.5 | 875×425×115 | |||||||
| SSL34-4 | 30 | 5V 50W | 3.2V/75AH | 3030/192PCS | ≥4500Lm | 8-10m | 25-30m | 12.0/12.5 | 1090×420×115 | |||||||
| SSL34-2 | 20 | 18V 25W | 12.8V/15AH | 3030/96PCS | ≥3000Lm | 5-6m | 15-20m | 6.0/6.5 | 715×425×115 | |||||||
| SSL34-3 | 25 | 18V 30W | 12.8V/18AH | 3030/144PCS | ≥3750Lm | 7-8m | 20-25m | 9.0/9.5 | 875×425×115 | |||||||
| SSL34-4 | 30 | 18V 50W | 12.8V/24AH | 3030/192PCS | ≥4500Lm | 8-10m | 25-30m | 12.0/12.5 | 1090×420×115 |
Product Details
Solar monocrystalline silicon panel
Higher photoelectric conversion efficiency and rapid charging speed.

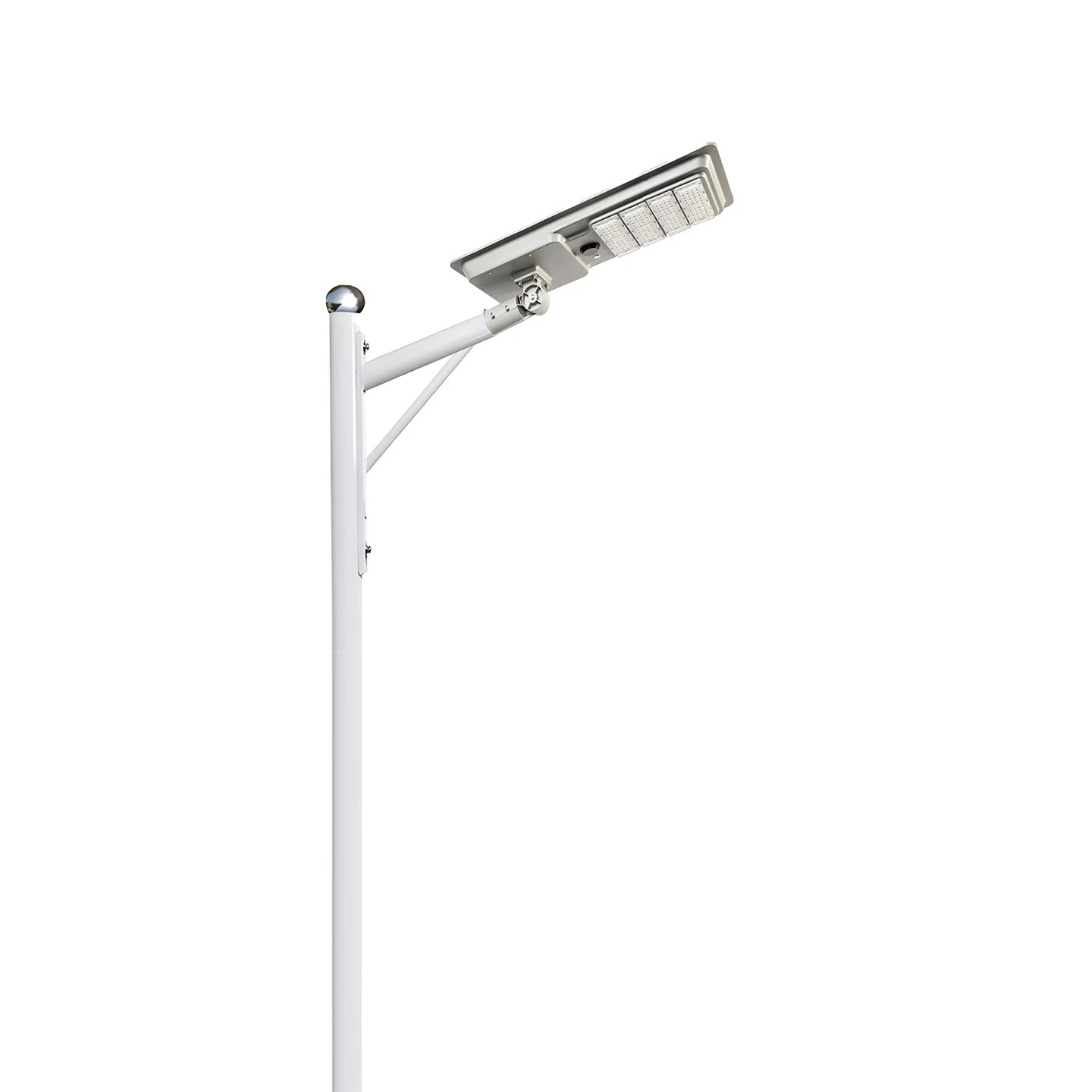

Installation Method
Thickened support rod with two mounting options to meet various pole installation requirements.
High-brightness LED chip
Precise light control and beam shaping enable a narrow light distribution and long-range projection while effectively preventing glare; features low thermal resistance and delivers intense, uniform illumination.
Secure housing
Die-cast aluminum; corrosion-resistant, waterproof, moisture-proof, and durable.
Size(mm)
Application Scenarios
FAQ
Q: Why should you choose solar LED street lights?
A: Solar LED street lights have several advantages, including energy-saving, environmental friendliness, easy installation, and maintenance-free operation.
Q: How do you choose solar LED street lights?
A: When selecting solar LED street lights, we consider the following factors: 1. The height of the pole; 2. The required working time of the solar street light each night; 3. The proportion of rainy and cloudy days in the installation location.
Q: Can I place a sample order for the solar LED street light?
A: Certainly, you can place a sample order to test the quality of the solar street light. However, please note that the price of the sample may differ from that of a large quantity order.
Q: How long can solar power be stored?
A: The integrated solar street light can store solar power for up to 6 months after the batteries are fully charged. It is recommended to periodically examine and charge the batteries after long periods of transportation to prevent damage.
Q: How do I choose the system voltage? 12V or 24V for normal street lights?
A: We can design the system for either 12V or 24V for solar street lights, or 100-277V for normal street lights.
Q: What should be considered during installation?
A: During installation, please ensure that the surface of the solar panel is exposed to direct sunlight. Additionally, keep the solar panel away from any obstructions such as buildings or trees that may cast shadows.
Q: How is the luminance of the solar street light controlled?
A: Our solar street lights utilize microwave sensor control and brightness sub-regulation. The brightness sub-regulation allows for the adjustment of brightness based on the time of day. For example, from 6:00 p.m. to 12:00 p.m., the brightness is set at 100%, while from 0:00 a.m. to 06:00 a.m., it is set at 20% or 30%. This feature allows our product to replace conventional LED street lights.
Q: What is the recommended mounting height?
A: We recommend a mounting height of 3-5m for solar street lights with a power rating of 20W, 30W, and 40W, and a mounting height of 6-8m for solar street lights with a power rating of 50W, 60W, and 80W.
Q: What is the recommended distance?
A: For the recommended distance, we suggest 10-15m for solar street lights with a power rating of 20W, 30W, and 40W, and 20-25m for solar street lights with a power rating of 50W, 60W, and 80W.
