LED Stadium Lights Guide: Requirements & Standards

Introduction

Whether it's a professional arena or a local community pitch, the quality of light defines the game. For athletes, precision lighting ensures safety and peak performance; For spectators and broadcasters, it guarantees a vibrant, high-definition experience. Navigating the complex world of athletic field lighting requires a deep understanding of international standards, which vary significantly by competition level and sport.


The Critical Parameters of Stadium Lighting Standards

Achieving the perfect environment for sports goes beyond simply "being bright". True professional-grade lighting is measured through a combination of core technical metrics:

• Lux Levels (Illuminance): The fundamental measure of light intensity on the field surface that directly determines brightness.

• Glare Control (GR/UGR): Limiting visual discomfort to ensure players never lose sight of the ball.

• Color Rendering Index (CRI): The ability of the light to reveal true colors accurately.

• Uniformity: Ensuring consistent light distribution without dark spots or "dead zones".

• Color Temperature (CCT): Setting the right visual tone, typically ranging from 4000K to 5700K.

Core Differences: Analyzing Lux Levels Across Sport Tiers

The most significant variance among stadium LED floodlight standards is the required lux level. As the stakes of the game rise, so do the demands for lumen output.

Specific sports also dictate unique requirements. For instance, fast-paced sports with small projectiles like Tennis or Badminton require high horizontal and vertical illuminance (750-1000+ Lux) to ensure the ball's trajectory is visible at all times. Football fields, due to their sheer scale, demand a balance of high vertical lux (≥1400-2000 Lux) for clear broadcast angles during long passes.

Visual Precision: Glare Control, CRI, and Uniformity

To meet the rigorous demands of modern sports, lighting must be "clean." High-definition broadcasting requires a CRI of 90 or higher to ensure faithful color reproduction on screen. Furthermore, uniformity standards must be strictly maintained; while a training field can operate at a 0.5 uniformity ratio, televised venues often require a staggering 0.8 or higher to eliminate shadows during high-speed camera pans.

Glare control is equally vital. For professional arenas, the glare rating (GR) must be kept ≤ 50 to prevent "blinding" effects that could compromise athlete safety or disrupt the performance of high-end optical sensors used in broadcasting.

Operational Excellence: Why LED is the Gold Standard

The transition to LED technology is no longer a luxury-it is the global industry standard. Modern outdoor LED floodlights offer undeniable advantages over traditional lighting systems:

• Energy Efficiency: Reducing energy consumption by 50% to 70%.

• Instant Start: LEDs reach full brightness immediately, enabling instant restarts after power fluctuations.

• Superior Longevity: A lifespan of 50,000 to 100,000 hours significantly reduces maintenance overhead.

• Precision Optics: Customizable beam angles minimize glare and maximize "light on target".

The JR Lighting Solution: High-Performance Athletic Illumination

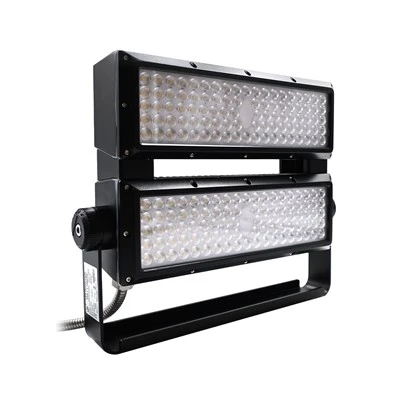

For stadiums demanding elite performance, the JR505 Series by JR Lighting, a leading LED stadium lights manufacturer, is the definitive solution. With power options from 400W up to 1200W and a 150Lm/W efficiency, it effortlessly meets HD broadcast lux requirements. Its specialized 4mm tempered glass and ADC12 aluminum housing provide IK08 impact resistance and anti-corrosion protection, making it ideal for the most demanding coastal or high-heat environments.

FAQs

Final Thoughts

Upgrading to professional athletic field lighting is a strategic investment in safety, performance, and sustainability. By adhering to these rigorous standards and utilizing cutting-edge LED technology, facility managers can create world-class environments that inspire athletes and captivate audiences alike.
