Understanding the Four Core Categories of HID Lamps and Their Industrial Applications

Excerpt / Introduction:

When selecting HID Outdoor Flood Lights for challenging environments, procurement managers and electrical engineers need precision across various aspects-not only lumen output but also spectral performance, restrike times, and vibration durability. As a specialized HID Flood Lights Manufacturer, we provide technical clarity to help you navigate the fundamental differences between lamp chemistries.

Selecting the wrong arc tube composition can degrade visual acuity on a port crane or lead to costly maintenance downtime. To streamline the selection process, we categorize HID Lamp technology into FOUR primary commercial archetypes.

1. Metal Halide (MH) – The Gold Standard for Visual Clarity

Field Applications: JR103 / JR103B utilized with MH1000W-T or MH2000W-TD lamps.

Metal Halide lamps produce light by passing an electric arc through a mixture of vaporized mercury and metal halides. This generates a crisp, high-color-rendering white light (65-90 CRI) that closely replicates daylight.

• Where It Excels: Sports stadiums, automotive manufacturing, and architectural facades.

• The JR103 Advantage: This series features a high-purity imported aluminum reflector with up to 95% reflectivity. For mobile lighting tower operators, the MH lamp's combination of luminous efficacy and color accuracy is essential for nighttime site safety.

• Durability: The JR103B model accommodates the powerful MH2000W-TD lamp with an Rx7s base. An integrated anti-vibration system ensures a secure connection despite the intense mechanical stress of portable equipment.

2. High-Pressure Sodium (HPS) – The Workhorse of Longevity

Field Applications: JR103 with HPS1000W-T lamp.

Distinguished by their signature amber glow, HPS lamps utilize an alumina arc tube to achieve extreme efficiency, often exceeding 100 lumens per watt. While color rendering is lower (CRI ~20-30), their lumen maintenance over tens of thousands of hours is exceptional.

• Where It Excels: Highway interchanges, critical infrastructure perimeters, and industrial storage yards.

• The JR103 Housing: Built with a high-pressure die-cast aluminum alloy housing and treated with an external electrostatic thermal spray coating, these units are a staple for port installations requiring IP65 protection and minimal intervention.

3. Mercury Vapor (MV) – The Legacy Infrastructure

Status Note: While MV lamps persist in legacy systems because of their simple ballast-only operation, they are being phased out due to energy regulations. As a leading HID Floodlight engineer, we advise that MV is no longer the performance benchmark. Modern MH and HPS solutions deliver superior lumen-per-watt metrics and enhanced corrosion resistance through ultraviolet-resistant silicone rubber sealing washers.

4. Low-Pressure Sodium (LPS) – The Monochromatic Specialist

LPS emits a pure, narrow-spectrum yellow light and holds the title for the highest theoretical luminous efficacy among all HID Lamps.

• Where It Excels: Areas adjacent to astronomical observatories requiring strict light pollution control.

• Precision Optics: The JR103 optical design-specifically the built-in light screen-reduces light scattering and improves lighting utilization, addressing light pollution concerns even with full-spectrum MH solutions.

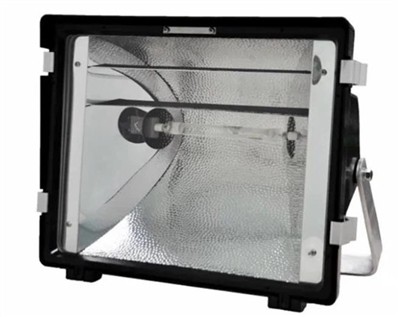

Applied Engineering: The JR103 HID Flood Light Specification

The JR103 series exemplifies the marriage of robust mechanical design with advanced thermal management.

• Housing & Resilience: High-pressure die-cast aluminum alloy provides the structural rigidity required for high-wattage operation while resisting galvanic corrosion. Stainless steel fasteners are used throughout to ensure long-term integrity.

• Thermal Management: The luminaire employs a scientifically designed aerodynamic heat-dissipation system combined with an imported respirator. This prevents condensation ingress and maintains safe temperatures for the E40/E39 or Rx7s lamp holders.

• Serviceability: An aluminum clasp mechanism provides tool-free access to the 6mm thermostable, ultra-white tempered glass. This significantly reduces Mean Time To Repair (MTTR) during field maintenance.

Conclusion

Selecting the optimal HID flood lighting solution requires balancing spectral performance, operational longevity, and mechanical resilience. Metal Halide remains the benchmark for applications demanding high color rendering and visual acuity, while High-Pressure Sodium excels in scenarios where extreme efficacy and extended maintenance intervals take priority. Legacy technologies like Mercury Vapor and specialized options like Low-Pressure Sodium serve increasingly narrow roles, often superseded by more efficient and versatile alternatives.

The JR103 HID Floodlight bridges these diverse requirements through a robust, service-oriented design combining high-purity reflectors, advanced thermal management, and corrosion-resistant construction. Whether deploying MH for precision work or HPS for perimeter endurance, the JR103 series ensures reliable operation in harsh environments, from port cranes to mobile lighting towers. For procurement managers and engineers, the decision ultimately hinges on application-specific priorities: color fidelity versus energy efficiency. With the JR103's adaptable architecture and field-proven durability, organizations can confidently match lamp chemistry to task without compromising on housing integrity or long-term maintainability.
