LED Floodlight Angle Adjustment Guide (Step-by-Step)
Sep 29, 2026
Introduction
In industrial and commercial lighting projects, even when high-quality, high-efficacy LED floodlights are selected, improper installation angles can still lead to issues such as uneven illumination, harsh glare, or wasted light energy.
While the choice of luminaire determines the "total light output," the adjustment of the projection angle determines the "efficiency of light utilization." Precisely adjusting the projection angle of LED floodlights is a critical step in ensuring the project meets design illuminance levels, minimizes light pollution, and enhances system safety.
Basic Concepts: Beam Angle and Tilting Angle
Before performing on-site aiming, it is essential to distinguish between two optical and mechanical parameters:
- Beam Angle: The fixed light output spread determined by the luminaire's lens or reflector (e.g., 30°, 60°, 90°, or asymmetric distribution). This parameter is established at the factory and cannot be altered on-site via mechanical adjustments.
- Tilting Angle: The angle of rotation of the luminaire body relative to the mounting surface or the vertical axis. Adjusting the U-bracket or base to change the direction of the light beam in space constitutes the primary action during on-site aiming.
Preparations Prior to Adjustment
To ensure operational safety and optical alignment accuracy, please prepare the following tools in advance and adhere to safety protocols:
1. Fastening tools: Hex key or socket wrench matching the screw specifications (a torque wrench is recommended).
2. Measuring tools: An inclinometer or a smartphone app with built-in angle measurement functionality.
3. Safety equipment: Safety harness for working at heights, non-slip gloves, and a helmet.
4. Safety protocols: Implement fall protection measures when working at heights, and ensure the main power supply is disconnected when commissioning the circuitry.
Four Standard Steps for Adjusting Floodlight Angles
Step 1: Loosen the Bracket Locking Screws
Locate the locking screws on both sides of the U-shaped mounting bracket. Loosen them just enough to allow the light fixture to be adjusted manually.
Safety Warning: Do not completely remove the screws on either side; doing so could cause the heavy light fixture to lose support and fall unexpectedly.
Step 2: Set the Tilt Angle
Manually tilt the luminaire to the designed angle based on the target illumination area:
Wall-washing/Floodlighting: Set the tilt angle between 30° and 45° to allow the light to extend smoothly along the wall surface and avoid overexposure at the center.
High-mast/Long-range lighting: Maintain a shallow angle to ensure the center of the light beam precisely covers the target area and minimizes spill light.
Step 3: Fine-Tune the Pan Angle
If the luminaire is equipped with a rotating base, fine-tune the horizontal angle so that the light beams from adjacent luminaires overlap naturally at their edges (with an overlap of approximately 15%–20%) to eliminate dark zones.
Step 4: Nighttime Verification and Torque-Specific Tightening
1. Low-Light Verification: Switch on the luminaire at night or in low-light conditions to inspect the beam overlap and edge definition on-site.
2. Screw Tightening: Tighten the screws using a torque wrench according to specifications and install spring washers to prevent the luminaire head from shifting due to strong winds or vibrations.
Practical Angle Adjustment in Typical Application Scenarios
|
Application Scenarios |
Adjustment Focus |
Parameters and Configuration Recommendations |
|
Building Facade Wall Washing |
Ensure a smooth transition of light from bottom to top on the wall. |
The ratio of light to wall distance should be maintained at 1:3 to 1:4 , and the elevation angle should be set at 30°–40°. |
|
Sports Stadiums/Fields |
Strictly control direct glare to protect athletes' vision. |
The elevation angle should be controlled within 60° ; combined with high-position installation and a polarizing lens. |
|
Outdoor Billboards |
The overall brightness of the page is uniform, with no central glare. |
2/3 of the height of the billboard . |
|
Storage Yard/Industrial Park |
Eliminate blind spots caused by equipment and tall cargo |
A cross-aiming strategy is adopted, utilizing multiple luminaires to cross-cover the light source. |

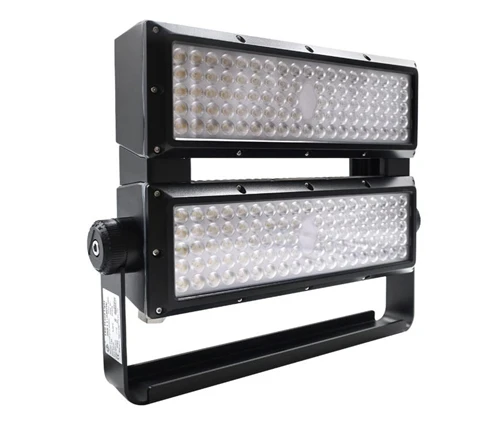

The JR511 modular LED stadium floodlight combines a high-density LED light source with professional-grade optical lenses to effectively minimize glare and meet professional sports lighting standards. Featuring a die-cast aluminum finned design, the fixture offers excellent heat dissipation; it boasts an IP66 waterproof and dustproof rating and is equipped with a reinforced U-shaped bracket to ensure stable, reliable mounting across various angles. It is ideally suited for outdoor venues such as soccer fields, basketball courts, sports complexes, and large public plazas. Its modular design facilitates easy maintenance while delivering high energy efficiency and long-lasting durability, with customizable options available for power output, color temperature, and beam angle.
Frequently Asked Questions (FAQ)
Q1: What is the optimal installation angle for LED floodlights?
A: A mounting height of 2.5 to 4 meters is generally recommended, with the light fixture tilted downward at an angle of 30° to 45°. This angle maximizes ground coverage while effectively preventing harsh glare and avoiding direct light intrusion into neighbors' windows.
Q2: How do I manually adjust the floodlight's beam angle?
A: Use a wrench or screwdriver to loosen the mounting bolts on both sides of the bracket, then rotate the light fixture to the desired tilt angle. It is advisable to turn the light on at night to observe and fine-tune the coverage area. Finally, ensure the screws are retightened securely to prevent the fixture from sagging due to wind.
Q3: What is the difference between the lens beam angle and the physical installation angle?
A: The beam angle refers to the spread of light determined by the lens (e.g., a narrow 30° beam or a wide 120° beam), whereas the installation angle refers to the manual tilt of the mounting bracket. For long-range projection from a height, choose a narrow beam angle with a shallow tilt; for wide-area illumination from a lower position, choose a wide beam angle combined with a 45° tilt.
Q4: How should I adjust the angle of a floodlight equipped with a motion sensor (PIR)?
A: While the light fixture should illuminate the target area, the sensor head needs to be adjusted independently-pointing horizontally or slightly downward toward the path where people are likely to walk. Avoid aiming the sensor at roadways, swaying foliage, or air conditioner vents, and position it so that the traffic path crosses the detection zone laterally for optimal sensitivity.
Conclusion
Precise angular adjustment is key to maximizing the high luminous efficacy of LEDs and extending system lifespan. Please contact our professional lighting engineers for optical calculations if you require light distribution layouts or light simulation reports for specific projects.
